Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | MENTOR |
|---|---|
| Manufacturer Part No | 1216.1013Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 2357787 |
| Your Part Number | |
| Technical Datasheet |
649 In Stock
Need more?
649 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$7.050 (S$7.6845) |
| 10+ | S$5.610 (S$6.1149) |
| 25+ | S$5.410 (S$5.8969) |
| 50+ | S$5.190 (S$5.6571) |
| 100+ | S$4.880 (S$5.3192) |
| 500+ | S$4.580 (S$4.9922) |
Price for:Each
Minimum: 1
Multiple: 1
S$7.05 (S$7.68 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MENTOR |
|---|---|
| Manufacturer Part No | 1216.1013Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 2357787 |
| Technical Datasheet | |
| Length | 150mm |
| No. of Light Pipes | 1Pipes |
| Light Pipe Shape | Circular |
| Light Pipe Mounting | Panel |
| Light Pipe Colour | Transparent |
| Product Range | - |
Product Overview

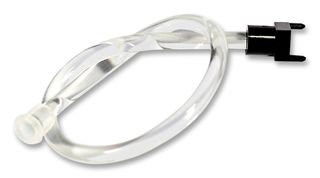

The 1216.1013 is a Flex SMD LED Light Guide System, Ø3mm fibre, 150mm length. This LED light guide system can be mounted to the PCB for use as a horizontal or vertical light guide. The light guide rod housing is held in place on the printed board with two press-in lugs and light guide are used in conjunction with SMD TOP LEDs.
- Black PC (UL94) housing
Applications
LED Lighting
Technical Specifications
| Length | 150mm |
|---|---|
| Light Pipe Shape | Circular |
| Light Pipe Colour | Transparent |
| No. of Light Pipes | 1Pipes |
|---|---|
| Light Pipe Mounting | Panel |
| Product Range | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Tunisia Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85419000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000726 |
