| Manufacturer | METCAL |
|---|---|
| Manufacturer Part No | PT4-4000-21Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 4733195 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$3,802.780 (S$4,145.0302) |
Product Information
| Manufacturer | METCAL |
|---|---|
| Manufacturer Part No | PT4-4000-21Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 4733195 |
| Technical Datasheet | |
| Supply Voltage VAC | 230V |
| Heat Temperature Max | 250°C |
| Output Power | 2.8kW |
| Product Range | - |
| Plug Type | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview

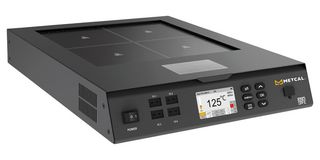

PT4-4000-21 is a PT4‑4000 4‑zone preheater. It is equipped with four independent temperature zones. This preheater offers exceptional flexibility to accommodate various PCB sizes and complexities. Its rapid heating capability minimizes downtime and enhances throughput, ensuring optimal performance across diverse applications. It offers versatile temperature control modes, including programmable profiles tailored to specific PCB requirements. These profiles can be easily imported and exported, ensuring repeatability and consistency across multiple projects while streamlining users' workflow. It is designed with user convenience in mind. The spring-loaded board holder securely holds PCBs of various sizes and materials, facilitating effortless insertion and removal. This mechanism minimizes handling time, reduces the risk of damage, and enhances overall operational efficiency.
- Powerful, uniform heat for every application- from the most delicate to the most thermally demanding
- Comprehensive four-zone thermal management with rapid heating efficiency
- Advanced temperature control modes with external thermocouple integration
- Customizable heating profiles for consistent and repeatable results
- Ergonomic spring-loaded PCB stand with broad compatibility
- User-friendly interface for intuitive operation
- 230V, 50Hz input voltage
- 2800W power rating
- Controllable temperature range from 50°C to 250°C
- Heating area (per zone): 9.4" x 9.4" (240 x 240mm)
Contents
4-zone preheater, (1) Screwdriver, (1) Grounding wire.
Technical Specifications
| Supply Voltage VAC | 230V |
|---|---|
| Output Power | 2.8kW |
| Plug Type | - |
| Heat Temperature Max | 250°C |
|---|---|
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85159080 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 13 |
