| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | AC244051Copy |
| Order Code | 2218172 |
| Your Part Number | |
| Technical Datasheet |
Product Information
| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | AC244051Copy |
| Order Code | 2218172 |
| Technical Datasheet | |
| Silicon Manufacturer | Microchip |
| Core Architecture | PIC |
| Core Sub-Architecture | PIC16 |
| Silicon Core Number | PIC16F1509 |
| Silicon Family Name | PIC16F |
| For Use With | PIC16F1509 Family Microcontrollers |
| Kit Contents | Processor Extension Pak PIC16F1509-ICE, RJ11 Jack to SIL Adapter |
| Product Range | - |
| SVHC | No SVHC (10-Jun-2022) |
Product Overview
AC244051 is a PIC16F1509-ICE processor extension pak is intended for those who wish to debug the PIC16F1509 family of microcontrollers in circuit, while freeing up I/O pins typically reserved for debugger use. The product is required for debugging the PIC16F1508/7/3/1 devices. The included SIL adapter interfaces the Processor Extension Pak with the MPLAB REAL ICE and MPLAB ICD 3 tools. The main product will interface directly with the PICkit 3 without the use of the SIL adapter.
Applications
Embedded Design & Development
Contents

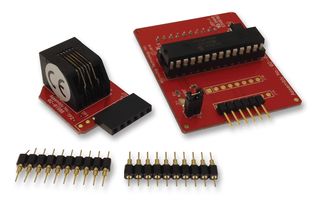

Processor extension pak, SIL adapter, Two headers.
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Notes
90 Day Warranty only. After Expiration of Warranty returns must be processed via Microchip.
Technical Specifications
| Silicon Manufacturer | Microchip |
|---|---|
| Core Sub-Architecture | PIC16 |
| Silicon Family Name | PIC16F |
| Kit Contents | Processor Extension Pak PIC16F1509-ICE, RJ11 Jack to SIL Adapter |
| SVHC | No SVHC (10-Jun-2022) |
| Core Architecture | PIC |
|---|---|
| Silicon Core Number | PIC16F1509 |
| For Use With | PIC16F1509 Family Microcontrollers |
| Product Range | - |
Associated Products
4 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733080 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| SVHC: | No SVHC (10-Jun-2022) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .068039 |
