MIKROE-6159
Development Kit, STM32F407ZGT6, ARM Cortex-M4F, 32bit, Resistive Touch Screen, 5" Display

| Manufacturer | MIKROELEKTRONIKA |
|---|---|
| Manufacturer Part No | MIKROE-6159Copy |
| Order Code | 4398551 |
| Your Part Number | |
| Technical Datasheet |
register your interest here
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$408.790 (S$445.5811) |
Product Information
| Manufacturer | MIKROELEKTRONIKA |
|---|---|
| Manufacturer Part No | MIKROE-6159Copy |
| Order Code | 4398551 |
| Technical Datasheet | |
| Silicon Manufacturer | STMicroelectronics |
| Silicon Core Number | STM32F407ZGT6 |
| Kit Application Type | Display |
| Application Sub Type | Multimedia and GUI-Centric |
| Kit Contents | Mikromedia 5 Resistive FPI Board STM32F407ZGT6 w/Frame, Solution Flyer, Damage Resistant Box |
| Product Range | - |
| SVHC | No SVHC (14-Jun-2023) |
Product Overview

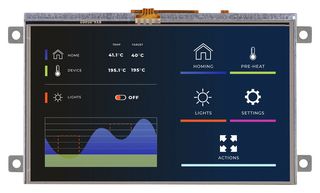

MIKROE-6159 is a Mikromedia 5 for STM32F7 Resistive FPI (Front Panel Integration) with frame. This is a compact development board designed as a complete solution for the rapid development of multimedia and GUI-centric applications. By featuring a 5" TFT display with resistive touch screen driven by the powerful graphics controller that can display the 24-bit colour palette (16.7 million colours), along with a DSP powered embedded sound CODEC IC, represents a perfect solution for any type of multimedia application. Mikromedia 5 for STM32F7 RESISTIVE FPI with frame is designed as the complete solution. It can be implemented directly into any project, with no additional hardware modifications. At its core, there is a powerful 32-bit STM32F407ZGT6 MCU from STMicroelectronics, which provides sufficient processing power for the most demanding tasks. Board has a TFT display with a metal frame, and four mounting holes that enable simple installation in various kinds of industrial appliances.
- Board requires the use of an external programmer and debugger, preferably CODEGRIP or mikroProg
- MCU can be programmed and debugged over JTAG/SWD compatible 2x5 pin header, labelled as PROG/DEBUG
Technical Specifications
| Silicon Manufacturer | STMicroelectronics |
|---|---|
| Kit Application Type | Display |
| Kit Contents | Mikromedia 5 Resistive FPI Board STM32F407ZGT6 w/Frame, Solution Flyer, Damage Resistant Box |
| SVHC | No SVHC (14-Jun-2023) |
| Silicon Core Number | STM32F407ZGT6 |
|---|---|
| Application Sub Type | Multimedia and GUI-Centric |
| Product Range | - |
Technical Docs (1)
Legislation and Environmental
| Tariff No: | 84718000 |
|---|---|
| US ECCN: | 3A991.a.2 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (14-Jun-2023) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 1.2 |
