173110-0023

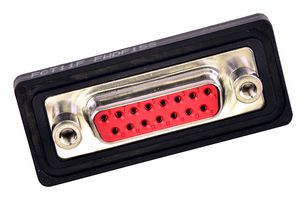

D Sub Connector, Standard, Receptacle, 173110 Series, 15 Contacts, DA, Solder Cup
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No173110-0023
Order Code3862589
Product Range173110 Series
Technical Datasheet
39 In Stock
Need more?
39 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$53.070 (S$57.8463) |
| 10+ | S$49.080 (S$53.4972) |
| 25+ | S$43.340 (S$47.2406) |
| 50+ | S$41.280 (S$44.9952) |
| 100+ | S$37.430 (S$40.7987) |
| 250+ | S$36.110 (S$39.3599) |
Price for:Each
Minimum: 1
Multiple: 1
S$53.07 (S$57.85 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMOLEX
Manufacturer Part No173110-0023
Order Code3862589
Product Range173110 Series
Technical Datasheet
D Sub Connector TypeStandard
Product Range173110 Series
No. of Contacts15Contacts
D Sub Shell SizeDA
Contact Termination TypeSolder Cup
Connector MountingPanel Mount
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
Connector Body MaterialBrass Body
SVHCLead (23-Jan-2024)
Product Overview
173110-0023 is a 173110 series Shielded FCT standard-density waterproof D-Sub female connector. Mates with FCT standard-density D-Sub, size 2, 15 position, plug. Use with FCT D-Sub dust caps.
- Single port, dual row, 15 circuits (loaded) and 15 circuits (maximum)
- Durability of 500 mating cycles max
- Red PBT resin
- Copper alloy contact material
- Brass material shell
- Straight orientation and solder cup termination style
- Polarized to mating part
- Gold over nickel contact plating and tin shell plating
- IP67 waterproof /dustproof
- Operating temperature range from -25 to +70°C
Technical Specifications
D Sub Connector Type
Standard
Product Range
173110 Series
D Sub Shell Size
DA
Connector Mounting
Panel Mount
Contact Plating
Gold Plated Contacts
SVHC
Lead (23-Jan-2024)
Gender
Receptacle
No. of Contacts
15Contacts
Contact Termination Type
Solder Cup
Contact Material
Copper Alloy
Connector Body Material
Brass Body
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Czech Republic
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Czech Republic
Country in which last significant manufacturing process was carried out
Tariff No:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (23-Jan-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.020738
