16-02-0109

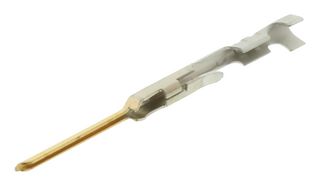

Contact, C-Grid®, SL 70021 Series, Pin, Crimp, 24 AWG, Gold Plated Contacts
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No16-02-0109Copy
Manufacturer Standard Lead Time11 weeks
Order Code1462564
Product RangeSL 70021 Series
Also Known As16020109, 70021-0206, 16-02-0109
Your Part Number
16,281 In Stock
Need more?
16,281 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 10+ | S$0.874 (S$0.9527) |
| 100+ | S$0.647 (S$0.7052) |
| 500+ | S$0.600 (S$0.654) |
| 1000+ | S$0.551 (S$0.6006) |
| 2000+ | S$0.542 (S$0.5908) |
| 3000+ | S$0.532 (S$0.5799) |
Price for:Each
Minimum: 10
Multiple: 10
S$8.74 (S$9.53 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMOLEX
Manufacturer Part No16-02-0109Copy
Manufacturer Standard Lead Time11 weeks
Order Code1462564
Product RangeSL 70021 Series
Also Known As16020109, 70021-0206, 16-02-0109
Technical Datasheet
Product RangeSL 70021 Series
Contact GenderPin
Contact Termination TypeCrimp
Wire Size AWG Max24AWG
Contact PlatingGold Plated Contacts
For Use WithMolex SL 70066 & 70107 Series Housing Connectors
Wire Size AWG Min30AWG
Contact MaterialPhosphor Bronze
SVHCNo SVHC (04-Feb-2026)
Product Overview
The 16-02-0109 is a SL™ crimp terminal with phosphor bronze body, gold-plating, male type. 24 to 30AWG wire. This crimp terminal is suitable for use with 70066 housing and 70107 housing.
- 0.381µm mating minimum plating
- Maximum wire insulation diameter is 1.52mm
Applications
Automotive, Commercial Vehicle, Communications & Networking, Consumer Electronics, Industrial, Medical
Technical Specifications
Product Range
SL 70021 Series
Contact Termination Type
Crimp
Contact Plating
Gold Plated Contacts
Wire Size AWG Min
30AWG
SVHC
No SVHC (04-Feb-2026)
Contact Gender
Pin
Wire Size AWG Max
24AWG
For Use With
Molex SL 70066 & 70107 Series Housing Connectors
Contact Material
Phosphor Bronze
Alternatives for 16-02-0109
2 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Malaysia
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Malaysia
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (04-Feb-2026)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.00009
