39-00-0083

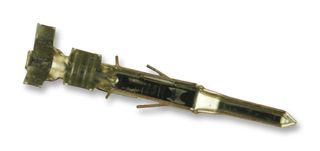

Contact, Mini-Fit Jr. 5558, Pin, Crimp, 16 AWG, Tin Plated Contacts
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No39-00-0083
Order Code2396357
Product RangeMini-Fit Jr. 5558
Also Known As5558PBT3, GTIN UPC EAN: 800753694415
Technical Datasheet
7,994 In Stock
Need more?
50 Next business day delivery available(SG stock)
7944 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 10+ | S$0.175 (S$0.1908) |
| 25+ | S$0.164 (S$0.1788) |
| 50+ | S$0.157 (S$0.1711) |
| 100+ | S$0.149 (S$0.1624) |
| 250+ | S$0.139 (S$0.1515) |
| 500+ | S$0.133 (S$0.145) |
| 1000+ | S$0.127 (S$0.1384) |
Price for:Each (Supplied on Cut Tape)
Minimum: 10
Multiple: 10
S$1.75 (S$1.91 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMOLEX
Manufacturer Part No39-00-0083
Order Code2396357
Product RangeMini-Fit Jr. 5558
Also Known As5558PBT3, GTIN UPC EAN: 800753694415
Technical Datasheet
Product RangeMini-Fit Jr. 5558
Contact GenderPin
Contact Termination TypeCrimp
Wire Size AWG Max16AWG
Contact PlatingTin Plated Contacts
For Use WithMolex Mini-Fit Jr. 5559 Series Plug Housing Connectors
Wire Size AWG Min-
Contact MaterialPhosphor Bronze
SVHCNo SVHC (25-Jun-2025)
Product Overview
The 39-00-0083 is a Mini-Fit® male pin crimp terminal made of phosphor bronze with tin plated finish. This 5558 series male crimp terminal accepts 16AWG wire. The pin terminal mates with 5556 Mini-Fit® crimp terminal. It can be used with 5559 Mini-Fit Jr.™ plug housing. The terminal is suitable for power applications.
- Maximum current per contact is 9A
- Maximum voltage is 600V
- Maximum durability of 30 mating cycles
Applications
Automotive, Commercial Vehicle, Communications & Networking, Consumer Electronics, Industrial, Medical, Communications & Networking
Technical Specifications
Product Range
Mini-Fit Jr. 5558
Contact Termination Type
Crimp
Contact Plating
Tin Plated Contacts
Wire Size AWG Min
-
SVHC
No SVHC (25-Jun-2025)
Contact Gender
Pin
Wire Size AWG Max
16AWG
For Use With
Molex Mini-Fit Jr. 5559 Series Plug Housing Connectors
Contact Material
Phosphor Bronze
Technical Docs (3)
Alternatives for 39-00-0083
2 Products Found
Associated Products
4 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:85369010
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000545
