39-00-0186

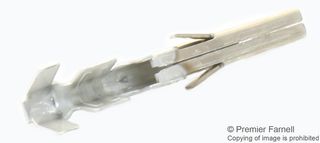

Contact, Mini-Fit Jr. 5556, Socket, Crimp, 16 AWG, Gold Plated Contacts
Need more?
| Quantity | Price (inc GST) |
|---|---|
| 10+ | S$0.800 (S$0.872) |
| 25+ | S$0.772 (S$0.8415) |
| 50+ | S$0.752 (S$0.8197) |
| 100+ | S$0.719 (S$0.7837) |
| 250+ | S$0.676 (S$0.7368) |
| 500+ | S$0.658 (S$0.7172) |
| 1000+ | S$0.640 (S$0.6976) |
| 2500+ | S$0.630 (S$0.6867) |
Product Information
Product Overview
The 39-00-0186 is a Mini-Fit® female socket crimp terminal made of phosphor bronze with gold plated finish. This 5556 series female crimp terminal accepts 16AWG wire. The socket terminal mates with 5558 Mini-Fit® crimp male terminals, 5566 and 5569 dual row Mini-Fit Jr.™ header. It can be used with 5557 Mini-Fit Jr.™ receptacle housing, 30067 Mini-Fit® TPA, 42474 Mini-Fit® BMI panel mount and 44516 Mini-Fit® BMI slide and lock panel mount. The terminal is suitable for power applications.
- Maximum current per contact is 9A
- Maximum voltage is 600V
- Maximum durability of 30 mating cycles
Applications
Automotive, Commercial Vehicle, Communications & Networking, Consumer Electronics, Industrial, Medical, Communications & Networking
Technical Specifications
Mini-Fit Jr. 5556
Crimp
Gold Plated Contacts
-
No SVHC (25-Jun-2025)
Socket
16AWG
Molex Mini-Fit Jr. 5557, Mini-Fit TPA 30067 & Mini-Fit BMI 42474, 44516 Series Housing Connectors
Phosphor Bronze
Technical Docs (2)
Alternatives for 39-00-0186
2 Products Found
Associated Products
2 Products Found
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:United States
