43030-0011
Contact, Micro-Fit 3.0 43030 Series, Socket, Crimp, 26 AWG, Gold Plated Contacts
- Manufacturer:
- MOLEX MOLEX
- Manufacturer Part No:
- 43030-0011
- Order Code:
- 2668474
- Product Range
- Micro-Fit 3.0 43030 Series
- Also Known As:
- GTIN UPC EAN: 800754369350
- Technical Datasheet:
- 43030-0011 Datasheet
Product Range Selector (Micro-Fit 3.0 43030 Series)
See all from this product rangeProduct Overview

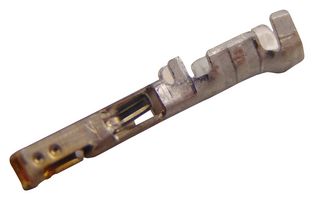

The 43030-0011 is a Micro-Fit 3.0™ female socket crimp terminal made of phosphor bronze with gold plated finish. This 43030 series female crimp terminal accepts 30 to 26AWG wire. The socket terminal mates with 43031 Micro-Fit 3.0™ male crimp terminals. It can be used with 43025, 43645 Micro-Fit 3.0™ receptacle housings and 44133 Micro-Fit BMI™ panel mount receptacle housings. The terminal is suitable for power applications.
- Locking tab on terminal secures terminal in housing
- Maximum current per contact is 5A
Applications
Alternative Energy, Automotive, Communications & Networking, Consumer Electronics, Medical
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Micro-Fit 3.0 43030 Series
- :
- Socket
- :
- Crimp
- :
- 26AWG
- :
- Gold Plated Contacts
- :
- Molex Micro-Fit 3.0 43025, 43645 & Micro-Fit BMI 44133 Series Receptacle Housing Connectors
- :
- 30AWG
- :
- Phosphor Bronze
Technical Docs (5)
CAD Downloads
--Please select...
✔
--Please select...
×
Terms and Conditions
CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.
Also Known As
GTIN UPC EAN: 800754369350
29,470 In stock Need more?
×
You can reserve stock now just order your desired quantity and checkout as normal. The quantity that cant be dispatched now will be placed on back order and sent as soon as we get a delivery from our supplier. You only get charged when the products are dispatched to you.
Extra stock is available upon order to the Supplier Lead Time which is approximately 21/2/22
29,470 UK stock for 3-4 days delivery
S$0.315
(
S$0.34
Inc. GST)
Pricing is unavailable. Please contact customer services.
- Price for:
- Each
Multiple: 10 Minimum: 10
| Quantity | Price (Incl GST) | Your Price (Incl GST) |
|---|---|---|
| 10+ | S$0.315 (S$0.34) | ( ) |
| 100+ | S$0.231 (S$0.25) | ( ) |
| 1000+ | S$0.186 (S$0.20) | ( ) |
| 2000+ | S$0.169 (S$0.18) | ( ) |
| 5000+ | S$0.148 (S$0.16) | ( ) |
| 10000+ | S$0.143 (S$0.15) | ( ) |
| 25000+ | S$0.139 (S$0.15) | ( ) |
| 50000+ | S$0.136 (S$0.15) | ( ) |
