BU-P3760-5
Binding Post, BU-P3760 Series, 15 A, 2500 Vrms, Nickel Plated Contacts, Panel Mount, Green
Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | MUELLER ELECTRIC |
|---|---|
| Manufacturer Part No | BU-P3760-5Copy |
| Manufacturer Standard Lead Time | 13 weeks |
| Order Code | 4566284 |
| Product Range | BU-P3760 Series |
| Your Part Number | |
| Technical Datasheet |
13 In Stock
Need more?
13 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$10.200 (S$11.118) |
| 5+ | S$9.650 (S$10.5185) |
| 10+ | S$9.160 (S$9.9844) |
| 20+ | S$8.710 (S$9.4939) |
Price for:Each
Minimum: 1
Multiple: 1
S$10.20 (S$11.12 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MUELLER ELECTRIC |
|---|---|
| Manufacturer Part No | BU-P3760-5Copy |
| Manufacturer Standard Lead Time | 13 weeks |
| Order Code | 4566284 |
| Product Range | BU-P3760 Series |
| Technical Datasheet | |
| Product Range | BU-P3760 Series |
| Current Rating | 15A |
| Voltage Rating | 2500Vrms |
| Contact Plating | Nickel Plated Contacts |
| Connector Mounting | Panel Mount |
| Connector Colour | Green |
| Contact Material | Brass |
| SVHC | No SVHC (27-Jun-2024) |
Product Overview

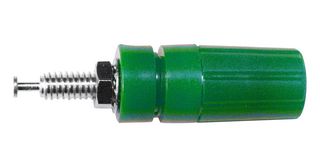

BU-P3760-5 is a green colour panel mountable nickel-plated binding post that accepts unshrouded or retractable 4mm banana plugs, bare wire, or spade lugs.
- Nickel-plated brass contact, Polycarbonate insulator
- Overall length 1.78” (45.2mm), OD = 0.44” (11.2mm)
- Mount thru panels between 0.70” and 0.25” thick with a Ø0.375” (9.52mm) hole
- 15A current rating, hands-free testing to 2500VRMS voltage rating
- Temperature range from -50°C to 115°C
Technical Specifications
| Product Range | BU-P3760 Series |
|---|---|
| Voltage Rating | 2500Vrms |
| Connector Mounting | Panel Mount |
| Contact Material | Brass |
| Current Rating | 15A |
|---|---|
| Contact Plating | Nickel Plated Contacts |
| Connector Colour | Green |
| SVHC | No SVHC (27-Jun-2024) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369010 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| SVHC: | No SVHC (27-Jun-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .011 |
