SMBM-BNCM17405

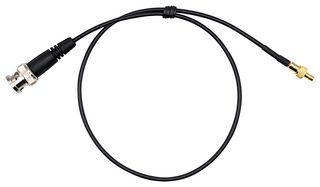

RF / Coaxial Cable Assembly, 19.7 ", 500 mm, RG174, BNC Straight Plug, SMB Straight Plug, 50 ohm
Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | MUELLER ELECTRIC |
|---|---|
| Manufacturer Part No | SMBM-BNCM17405Copy |
| Manufacturer Standard Lead Time | 13 weeks |
| Order Code | 4349443 |
| Product Range | SMBM-BNCM174 Series |
| Your Part Number | |
| Technical Datasheet |
4 In Stock
Need more?
4 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$24.200 (S$26.378) |
| 5+ | S$22.380 (S$24.3942) |
| 10+ | S$21.520 (S$23.4568) |
Price for:Each
Minimum: 1
Multiple: 1
S$24.20 (S$26.38 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MUELLER ELECTRIC |
|---|---|
| Manufacturer Part No | SMBM-BNCM17405Copy |
| Manufacturer Standard Lead Time | 13 weeks |
| Order Code | 4349443 |
| Product Range | SMBM-BNCM174 Series |
| Technical Datasheet | |
| Cable Length - Imperial | 19.7" |
| Connector to Connector | BNC Plug to SMB Plug |
| Cable Length - Metric | 500mm |
| Coaxial Cable Type | RG174 |
| Connector Type A | BNC Straight Plug |
| Connector Type B | SMB Straight Plug |
| Impedance | 50ohm |
| Jacket Colour | - |
| Product Range | SMBM-BNCM174 Series |
| SVHC | No SVHC (19-Jan-2021) |
Product Overview
SMBM-BNCM17405 is a shielded coaxial SMB male to BNC male RG-174 cable assembly.
- Frequency range from 0 to 3GHz
- 1.35 max VSWR
- Operating temperature range from -65°C (-85°F) to 145°C (293°F)
- 0.5m cable length
Technical Specifications
| Cable Length - Imperial | 19.7" |
|---|---|
| Cable Length - Metric | 500mm |
| Connector Type A | BNC Straight Plug |
| Impedance | 50ohm |
| Product Range | SMBM-BNCM174 Series |
| Connector to Connector | BNC Plug to SMB Plug |
|---|---|
| Coaxial Cable Type | RG174 |
| Connector Type B | SMB Straight Plug |
| Jacket Colour | - |
| SVHC | No SVHC (19-Jan-2021) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85442000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (19-Jan-2021) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .014 |
