MC-254-16-00-ST-DIP
Pin Header, Wire-to-Board, 2.54 mm, 2 Rows, 16 Contacts, Through Hole

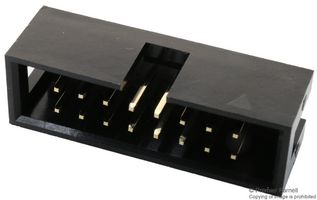

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMULTICOMP PRO
Manufacturer Part NoMC-254-16-00-ST-DIP
Order Code2843530
Technical Datasheet
5,177 In Stock
Need more?
1954 Next business day delivery available(SG stock)
3223 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$0.590 (S$0.6431) |
| 10+ | S$0.518 (S$0.5646) |
| 50+ | S$0.433 (S$0.472) |
| 100+ | S$0.334 (S$0.3641) |
| 200+ | S$0.294 (S$0.3205) |
| 400+ | S$0.279 (S$0.3041) |
| 1000+ | S$0.265 (S$0.2888) |
Price for:Each
Minimum: 1
Multiple: 1
S$0.59 (S$0.64 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMULTICOMP PRO
Manufacturer Part NoMC-254-16-00-ST-DIP
Order Code2843530
Technical Datasheet
Connector SystemsWire-to-Board
Pitch Spacing2.54mm
No. of Rows2Rows
No. of Contacts16Contacts
Contact Termination TypeThrough Hole
Product Range-
Connector Shroud-
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
Connector Type-
Product Overview
MC-254-16-00-ST-DIP is a 2.54 mm pitch pin header designed for wire-to-board connections. It features 16 contacts arranged in 2 rows, making it ideal for compact, high-density applications. The through-hole design ensures secure mounting on PCBs, offering reliable electrical connections in a variety of electronic devices. This pin header is perfect for use in applications requiring sturdy, durable, and efficient connections, such as power distribution, signal routing, and more.
- Connector systems: wire-to-board
- Contact material: copper alloy
- Contact termination type: through hole
- Contact plating: gold plated contacts
Technical Specifications
Connector Systems
Wire-to-Board
No. of Rows
2Rows
Contact Termination Type
Through Hole
Connector Shroud
-
Contact Plating
Gold Plated Contacts
SVHC
No SVHC (25-Jun-2025)
Pitch Spacing
2.54mm
No. of Contacts
16Contacts
Product Range
-
Contact Material
Copper Alloy
Connector Type
-
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.003
