MP-APOT-023-06-075(0608)A-M1N

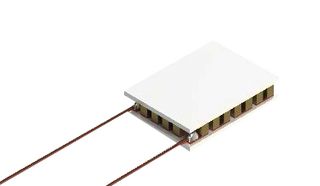

TE Cooler Module, 1.9 A, 2.7 V, 3.1 W, 1.29 ohm, 72.9 °C, 30 AWG Solid Bare Wire, 8.2 x 6 x 1.75mm
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMULTICOMP PRO
Manufacturer Part NoMP-APOT-023-06-075(0608)A-M1NCopy
Manufacturer Standard Lead Time12 weeks
Order Code4568393
Your Part Number
10 In Stock
Need more?
10 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$53.040 (S$57.8136) |
| 3+ | S$45.580 (S$49.6822) |
| 10+ | S$40.160 (S$43.7744) |
| 25+ | S$39.370 (S$42.9133) |
| 100+ | S$37.440 (S$40.8096) |
Price for:Each
Minimum: 1
Multiple: 1
S$53.04 (S$57.81 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMULTICOMP PRO
Manufacturer Part NoMP-APOT-023-06-075(0608)A-M1NCopy
Manufacturer Standard Lead Time12 weeks
Order Code4568393
Technical Datasheet
No. of Stages-
Cooling Power Pc3.1W
Current Max @ Diff Temperature Max1.9A
Voltage Max @ Diff Temperature Max2.7V
Length8.2mm
Width6mm
Depth1.75mm
Temperature Difference Max72.9°C
Product Range-
Internal Resistance1.29ohm
Lead Wires30 AWG Solid Bare
SVHCNo SVHC (21-Jan-2025)
Product Overview
MP-APOT-023-06-075(0608)A-M1N is a TE cooler module.
- 2.7V maximum voltage
- 3.1W cooling power
- 1.29ohm internal resistance
- 1.9A maximum current
- 72.9°C maximum temperature difference
- 8.2mm length, 1.75mm depth, 6mm width
- 30AWG solid bare wire
Technical Specifications
No. of Stages
-
Current Max @ Diff Temperature Max
1.9A
Length
8.2mm
Depth
1.75mm
Product Range
-
Lead Wires
30 AWG Solid Bare
Cooling Power Pc
3.1W
Voltage Max @ Diff Temperature Max
2.7V
Width
6mm
Temperature Difference Max
72.9°C
Internal Resistance
1.29ohm
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:84186900
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.007
