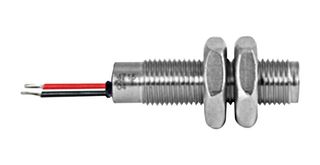

MP-HS-2210M-4-0300
Hall Effect Proximity Sensor, Wire Leads, M10, 3 to 24 VDC
Need more?
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$27.040 (S$29.4736) |
| 10+ | S$24.770 (S$26.9993) |
| 25+ | S$22.880 (S$24.9392) |
| 50+ | S$21.240 (S$23.1516) |
| 100+ | S$19.830 (S$21.6147) |
| 200+ | S$18.600 (S$20.274) |
Product Information
Product Overview
MP-HS-2210M-4-0300 is a 2-wire, M10 threaded, latching, hall sensor. Hall sensors are ideal for high-frequency applications where accuracy and product life are critical. Typical applications include position control, speed measurement RPM, non-touch switching, level sensing and flow detection. It operates with a supply voltage of up to 24VDC making it suitable for the automotive industry. It offers flat pack, tubular threaded and flange mount solutions. It is IP67 rated.
- Compact size, various switching sensitivities
- Supply voltage range from 3 to 24V
- Low supply current range from 5 to 7V (TJ=25°C and VSUP= 12V)
- 1μs output fall time and rise time max (TJ=25°C, VSUP=12V)
- Delay time is 16μs typ (TJ=25°C), output refresh period range from 1.6 to 2.66μs (VSUP=12V, TJ=25°C)
- Nickel plated brass housing, UL1007/1569, AWG 24 cable
- Epoxy potting compound
- Operating temperature range from -20°C to + 85°C
Applications
Industrial, Automation & Process Control, Automotive, Installations
Contents
x1 Hall effect proximity sensor.
Notes
Versatile and cost-effective solution for a variety of applications.
Technical Specifications
Magnetic Sensor
24V
2.7V
85°C
Thread Mount
No SVHC (21-Jan-2025)
3V
Wire Leads
-20°C
24V
-
