MP-HS-2210M-5-0300

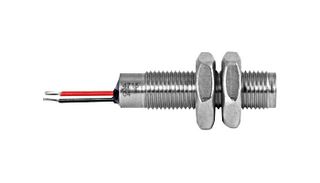

Hall Effect Proximity Sensor, Wire Leads, M10, 3 to 24 VDC
Image is for illustrative purposes only. Please refer to product description.
221 In Stock
Need more?
221 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$27.040 (S$29.4736) |
| 10+ | S$24.770 (S$26.9993) |
| 25+ | S$22.880 (S$24.9392) |
| 50+ | S$21.240 (S$23.1516) |
| 100+ | S$19.830 (S$21.6147) |
| 200+ | S$18.600 (S$20.274) |
Price for:Each
Minimum: 1
Multiple: 1
S$27.04 (S$29.47 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMULTICOMP PRO
Manufacturer Part NoMP-HS-2210M-5-0300
Order Code4261463
Technical Datasheet
Sensor TypeMagnetic Sensor
Supply Voltage DC Min3V
Supply Voltage DC Max24V
Sensor TerminalsWire Leads
Operating Temperature Min-20°C
Operating Temperature Max85°C
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
MP-HS-2210M-5-0300 is a hall threaded effect position sensor. Hall sensors is ideal for high frequency applications where accuracy and product life are critical. Typical applications include position control, speed measurement RPM, non-touch switching, level sensing and flow detection. It operates with a supply voltage of up to 24VDC making it suitable for the automotive industry. It offers flat pack, tubular threaded and flange mount solutions. It is IP67 rated.
- Compact size, various switching sensitivities
- Supply voltage range from 3 to 24V
- Low supply current range from 2 to 5V (TJ=25°C and VSUP= 12V)
- 1μs output fall time and rise time max (TJ=25°C, VSUP=12V)
- Delay time is 16μs typ (TJ=25°C), output refresh period range from 1.6 to 2.66μs (VSUP=12V, TJ=25°C)
- Nickel plated brass housing, UL1007/1569, AWG 24 cable
- Epoxy potting compound
- Operating temperature range from -20°C to + 85°C
Applications
Industrial, Automation & Process Control, Automotive, Installations
Contents
x1 Hall effect proximity sensor.
Notes
Versatile and cost-effective solution for a variety of applications.
Technical Specifications
Sensor Type
Magnetic Sensor
Supply Voltage DC Max
24V
Operating Temperature Min
-20°C
Product Range
-
Supply Voltage DC Min
3V
Sensor Terminals
Wire Leads
Operating Temperature Max
85°C
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:90318080
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.01
