MC24S3-A1M,L-42R/PH.
POTENTIOMETER, 1M LOG

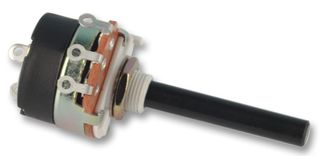

Image is for illustrative purposes only. Please refer to product description.
No Longer Manufactured
Product Information
ManufacturerMULTICOMP
Manufacturer Part NoMC24S3-A1M,L-42R/PH.
Order Code4415425
Technical Datasheet
Track Resistance1Mohm
Track Taper-
Power Rating250mW
Resistance Tolerance± 20%
Shaft Diameter6mm
Shaft Length42mm
Temperature Coefficient-
Potentiometer Type-
Potentiometer TerminalsSolder Lug
Resistor Case / Package-
Product Length67mm
Operating Temperature Min-
Operating Temperature Max-
SVHCNo SVHC (07-Jul-2017)
Technical Specifications
Track Resistance
1Mohm
Power Rating
250mW
Shaft Diameter
6mm
Temperature Coefficient
-
Potentiometer Terminals
Solder Lug
Product Length
67mm
Operating Temperature Max
-
Track Taper
-
Resistance Tolerance
± 20%
Shaft Length
42mm
Potentiometer Type
-
Resistor Case / Package
-
Operating Temperature Min
-
SVHC
No SVHC (07-Jul-2017)
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85334010
RoHS Compliant:To be advised
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (07-Jul-2017)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.014
