782255-01

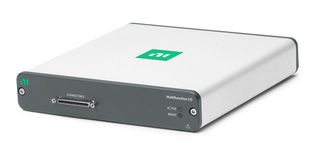

782255-01 is a USB-6361 multifunction I/O device. It offers analogue I/O, digital I/O, and four 32-bit counters/timers for PWM, encoder, frequency, event counting, and more. On-board NI-STC3 timing and synchronisation technology delivers advanced timing functionality, including independent analogue and digital timing engines and retriggerable measurement tasks. The USB-6361 is well suited for a broad range of applications, from basic data logging to control and test automation. The included NI-DAQmx driver and configuration utility simplify configuration and measurements. It has IEC 61010-1, EN 61010-1, UL 61010-1, CSA C22.2 No. 61010-1 safety standards.

• 16 maximum number of single-ended analogue input channels
• 16 bits analogue input resolution
• 2MS/s maximum sample rate
• 2 analogue output channels
• 2.86MS/s maximum update rate
• USB 2.0 bus connector, DC input coupling
• 4 number of counters/timers, 1660μV analogue input absolute accuracy
• 24 bidirectional digital channels, analogue input FIFO buffer size is 2047 samples
• 8 maximum number of differential analogue input channels
• BNC front connection
