681S13W3103L001

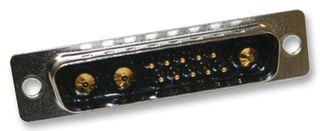

Combination Layout D Sub Connector, 40A, IP68, Seal-D 681S Series, DB-13W3, Plug, 13 Contacts
50 more incoming. You can reserve stock now
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$23.440 (S$25.5496) |
| 10+ | S$19.930 (S$21.7237) |
| 25+ | S$18.680 (S$20.3612) |
| 100+ | S$16.940 (S$18.4646) |
| 250+ | S$15.890 (S$17.3201) |
| 500+ | S$15.120 (S$16.4808) |
Product Information
Product Overview
The SEAL-D 681S series POWER-D vertical board-mount Mixed D-sub Connectors with machined copper alloy, full gold flash signal and power contacts with glass-filled thermoplastic insulator and nickel-plated, steel shell. It is available in 11 industry standard sizes/positions are 3W3, 5W1, 5W5, 7W2, 9W4, 11W1, 13W3, 13W6, 17W2, 21W1 and 21WA4. Unique sealing method maintains standard D-sub profile allowing for drop in replacement of current POWER-D connectors.
- Available in 9, 15, 25 and 37 sizes/positions
- Available with 40A power contacts, 5A signal
- IP67 Protection
- Allows signal, high current and high voltage in one connector
- Contacts are pre-loaded into the insulator
- UL94V-0 Flammability rating
- Panel sealing kits (Removable or permanent) available as a separate item
Applications
Communications & Networking, Computers & Computer Peripherals, Power Management, Industrial
Technical Specifications
Seal-D 681S Series
Plug
10 Signal, 3 Power
Through Hole Mount
Copper Alloy
Lead (27-Jun-2024)
DB-13W3
13Contacts
Solder
Steel Body
Gold Plated Contacts
