CU20025-TW200B
VFD Display, Dot Matrix, 100 x 14, 12.9mm x 78.65mm, Parallel / Serial, 260 mA, 4.75 V to 5.25 V

| Manufacturer | NORITAKE ITRON |
|---|---|
| Manufacturer Part No | CU20025-TW200BCopy |
| Manufacturer Standard Lead Time | 30 weeks |
| Order Code | 1216665 |
| Your Part Number | |
| Technical Datasheet |
Notify me when back in stock
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$202.610 (S$220.8449) |
| 5+ | S$193.000 (S$210.370) |
| 10+ | S$183.040 (S$199.5136) |
| 50+ | S$178.250 (S$194.2925) |
Product Information
| Manufacturer | NORITAKE ITRON |
|---|---|
| Manufacturer Part No | CU20025-TW200BCopy |
| Manufacturer Standard Lead Time | 30 weeks |
| Order Code | 1216665 |
| Technical Datasheet | |
| Resolution | 100 x 14 |
| Viewing Area (H x W) | 12.9mm x 78.65mm |
| Character Format | Dot Matrix |
| Supply Voltage Min | 4.75V |
| Supply Voltage Max | 5.25V |
| Supply Current | 260mA |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Interface Type | Parallel, Serial |
| Product Range | - |
Product Overview

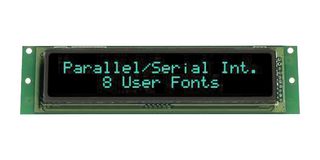

CU20025-TW200B is a 5X7 dot character VFD module. The module includes the vacuum fluorescent display glass, driver, and micro-controller ICs with refresh RAM, character generator, and interface logic. The high-speed 8-bit parallel interface is 5V CMOS compatible and suitable for connection to a host CPU bus. The asynchronous serial interface accepts baud rates up to 19,200 with or without parity (Default – 19200 BPS, even parity, international font). Two-character font tables can be hardware or software selected.20x2 VFD Module with ANK, ASCII, katakana and International fonts. It has 5x7 dot matrix and underline character format and green (blue-green) illumination colour.
- 2 lines of 20 characters 5mm high
- High speed parallel/serial interface
- Wide operating temperature range from -40°C to +85°C
- Single 5V supply
- High brightness blue green display
- ASCII, Katakana & extended character font
- 16 user definable characters
Technical Specifications
| Resolution | 100 x 14 |
|---|---|
| Character Format | Dot Matrix |
| Supply Voltage Max | 5.25V |
| Operating Temperature Min | -40°C |
| Interface Type | Parallel, Serial |
| Viewing Area (H x W) | 12.9mm x 78.65mm |
|---|---|
| Supply Voltage Min | 4.75V |
| Supply Current | 260mA |
| Operating Temperature Max | 85°C |
| Product Range | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Japan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85408900 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | No |
| RoHS Phthalates Compliant: | No |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .08 |
