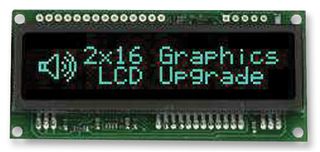

GU112X16G-7806A
VFD Display, Dot Matrix, 112 x 16, 11.45mm x 52.5mm, Parallel / Serial, 250 mA, 4.75 V to 5.25 V

| Manufacturer | NORITAKE ITRON |
|---|---|
| Manufacturer Part No | GU112X16G-7806ACopy |
| Manufacturer Standard Lead Time | 30 weeks |
| Order Code | 1495419 |
| Your Part Number | |
| Technical Datasheet |
188 more incoming. You can reserve stock now
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$144.090 (S$157.0581) |
| 5+ | S$137.250 (S$149.6025) |
| 10+ | S$130.170 (S$141.8853) |
| 50+ | S$126.760 (S$138.1684) |
Product Information
| Manufacturer | NORITAKE ITRON |
|---|---|
| Manufacturer Part No | GU112X16G-7806ACopy |
| Manufacturer Standard Lead Time | 30 weeks |
| Order Code | 1495419 |
| Technical Datasheet | |
| Resolution | 112 x 16 |
| Viewing Area (H x W) | 11.45mm x 52.5mm |
| Character Format | Dot Graphic |
| Supply Voltage Min | 4.75V |
| Supply Voltage Max | 5.25V |
| Supply Current | 250mA |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Interface Type | Parallel, Serial |
| Product Range | - |
| SVHC | No SVHC (14-Jun-2023) |
Product Overview
The GU112X16G-7806A is a Dot Graphic VFD Module features high brightness blue-green display. The 4/8-bit parallel and serial bidirectional interfaces are 5V TTL/CMOS compatible. The command set is LCD compatible with extended graphic functions. It features LCD parallel/SPI/Async interface and scroll + image + fill commands. This module has a fast latching 8-bit data bus. The RS and R/W control lines should be set prior to the rising edge of the E enable line. Data is clocked in on the falling edge of the enable line. The busy line should be checked before sending data.
- ASCII+ Fonts
- 7806A LCD emulation + graphics
Applications
Industrial
Contents
VFD Module, Vacuum fluorescent display glass, VF drivers and Microcontroller ICs with refresh RAM, Character generator and Interface logic.
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
| Resolution | 112 x 16 |
|---|---|
| Character Format | Dot Graphic |
| Supply Voltage Max | 5.25V |
| Operating Temperature Min | -40°C |
| Interface Type | Parallel, Serial |
| SVHC | No SVHC (14-Jun-2023) |
| Viewing Area (H x W) | 11.45mm x 52.5mm |
|---|---|
| Supply Voltage Min | 4.75V |
| Supply Current | 250mA |
| Operating Temperature Max | 85°C |
| Product Range | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Great Britain Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85408900 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (14-Jun-2023) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .03 |
