PX274-0.1DI
Pressure Transmitter, 4 to 20 mA, Differential, Dual Radial Barbed, Same Side, 0 Inch-H2O

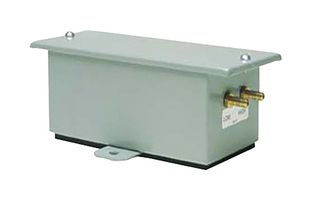

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | OMEGA |
|---|---|
| Manufacturer Part No | PX274-0.1DICopy |
| Manufacturer Standard Lead Time | 41 weeks |
| Order Code | 3410443 |
| Product Range | PX274 Series |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 41 week(s)
Notify me when back in stock
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$584.700 (S$637.323) |
Price for:Each
Minimum: 1
Multiple: 1
S$584.70 (S$637.32 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | OMEGA |
|---|---|
| Manufacturer Part No | PX274-0.1DICopy |
| Manufacturer Standard Lead Time | 41 weeks |
| Order Code | 3410443 |
| Product Range | PX274 Series |
| Technical Datasheet | |
| Pressure Type | Differential |
| Sensor Output Type | Current |
| Pressure Port Type | Dual Radial Barbed, Same Side |
| Pressure Measurement Type | Differential |
| Operating Pressure Min | 0Inch-H2O |
| Operating Pressure Max | 0.1Inch-H2O |
| Voltage Rating | 40VDC |
| Pressure Port Size | 3/16" |
| Port Style | Hose / Tube |
| Transducer Connection / Termination | Terminal Block |
| Supply Voltage Min | 12VDC |
| Supply Voltage Max | 40VDC |
| Media Type | Dry Air, Dry Gas, Non-Corrosive / Non-Ionic Fluid |
| Output Interface | - |
| Sensor Output Type | Analogue |
| Housing Material | Steel |
| Operating Temperature Min | -18°C |
| Operating Temperature Max | 80°C |
| Product Range | PX274 Series |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
PX274 is a rugged differential pressure transmitter that offers up to 6 field-selectable ranges in one unit. It incorporates a rugged NEMA 4 (IP65) dust-proof and splashproof enclosure with an external mounting bracket.
- Differential transducer with 4-20mA output, 0-0.1inch H2O maximum range
- Short circuit and reverse polarity protected
- Up to 10 PSID overpressure without zero shift
Technical Specifications
| Pressure Type | Differential |
|---|---|
| Pressure Port Type | Dual Radial Barbed, Same Side |
| Operating Pressure Min | 0Inch-H2O |
| Voltage Rating | 40VDC |
| Port Style | Hose / Tube |
| Supply Voltage Min | 12VDC |
| Media Type | Dry Air, Dry Gas, Non-Corrosive / Non-Ionic Fluid |
| Sensor Output Type | Analogue |
| Operating Temperature Min | -18°C |
| Product Range | PX274 Series |
| Sensor Output Type | Current |
|---|---|
| Pressure Measurement Type | Differential |
| Operating Pressure Max | 0.1Inch-H2O |
| Pressure Port Size | 3/16" |
| Transducer Connection / Termination | Terminal Block |
| Supply Voltage Max | 40VDC |
| Output Interface | - |
| Housing Material | Steel |
| Operating Temperature Max | 80°C |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90262020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .6 |
