PX409-2.5KG5V
Pressure Transmitter, Gauge, NPT Male, 2500 psi, 1/4"-18, Cable

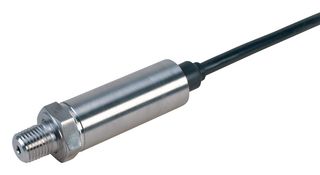

Image is for illustrative purposes only. Please refer to product description.
ManufacturerOMEGA
Manufacturer Part NoPX409-2.5KG5V
Order Code3805616
Product RangePX409 Series
Technical Datasheet
2 In Stock
Need more?
1 Next business day delivery available(SG stock)
1 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$876.660 (S$955.5594) |
Price for:Each
Minimum: 1
Multiple: 1
S$876.66 (S$955.56 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerOMEGA
Manufacturer Part NoPX409-2.5KG5V
Order Code3805616
Product RangePX409 Series
Technical Datasheet
Pressure TypeGauge
Pressure Port TypeNPT Male
Operating Pressure Min-
Voltage Rating30VDC
Operating Pressure Max2500psi
Pressure Port Size1/4"-18
Supply Current10mA
Transducer Connection / TerminationCable
Supply Voltage Min10VDC
Supply Voltage Max30VDC
Media Type-
Output Interface-
Sensor Output TypeAnalogue
Housing Material316L Stainless Steel
Operating Temperature Min-45°C
Operating Temperature Max115°C
Product RangePX409 Series
SVHCNo SVHC (17-Jan-2022)
Product Overview
- Configurable, high accuracy pressure transducer
- 0 to 2500psi gauge pressure, 1/4" NPT male, cable, (-49 to 240°F)
- Fast response time
- High accuracy ±0.08% BSL includes linearity, hysteresis and repeatability
- Premium temperature performance span: ±0.5% over compensated range
- 5-point NIST-traceable calibration
- Voltage output signal, 0 to 5VDC output
- Solid state reliability and stability
- 300% proof pressure minimum
- 172bar range and 2m (6') cable termination
Technical Specifications
Pressure Type
Gauge
Operating Pressure Min
-
Operating Pressure Max
2500psi
Supply Current
10mA
Supply Voltage Min
10VDC
Media Type
-
Sensor Output Type
Analogue
Operating Temperature Min
-45°C
Product Range
PX409 Series
Pressure Port Type
NPT Male
Voltage Rating
30VDC
Pressure Port Size
1/4"-18
Transducer Connection / Termination
Cable
Supply Voltage Max
30VDC
Output Interface
-
Housing Material
316L Stainless Steel
Operating Temperature Max
115°C
SVHC
No SVHC (17-Jan-2022)
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:90262020
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2022)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.410954
