EESX4088
PHOTO INTERRUPTER, TRANSMISSIVE, 3.4MM

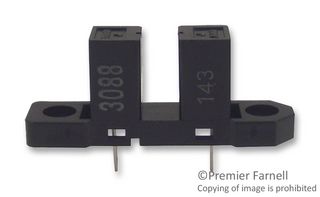

Image is for illustrative purposes only. Please refer to product description.
ManufacturerOMRON ELECTRONIC COMPONENTS
Manufacturer Part NoEESX4088
Order Code2301872
Also Known AsEE-SX4088, EESX1510A
Technical Datasheet
No Longer Manufactured
Product Information
ManufacturerOMRON ELECTRONIC COMPONENTS
Manufacturer Part NoEESX4088
Order Code2301872
Also Known AsEE-SX4088, EESX1510A
Technical Datasheet
Sensing MethodTransmissive
Sensing Distance / Slot Width3.4mm
Gap Width3.4mm
Supply Voltage Min4.5VDC
Supply Voltage Max16VDC
Aperture Width0.5mm
Forward Current If50mA
Sensor Case / PackageModule
Reverse Voltage Vr4V
Collector Emitter Voltage Max-
Collector Current IC Max-
Forward Voltage1.2V
Sensor Output TypePhoto / Optical IC
IP Rating-
Sensor MountingPanel, Through Hole
Operating Temperature Min-40°C
Operating Temperature Max75°C
Product Range-
Qualification-
SVHCNo SVHC (17-Dec-2014)
Product Overview
EESX4088 is a EE-SX4088 series transmissive photo microsensor (Transmissive) for use with power supply voltage of 4.5 to 16VDC.
- Screw-mounting type
- 3.4mm sensing distance
- PTr/P-IC output configuration
- Aperture size is 0.5mm
- Dimensions (LxWxH) is 25 x 6 x 10mm
- Photo IC output: light ON
- Directly connectable to C-MOS
Technical Specifications
Sensing Method
Transmissive
Gap Width
3.4mm
Supply Voltage Max
16VDC
Forward Current If
50mA
Reverse Voltage Vr
4V
Collector Current IC Max
-
Sensor Output Type
Photo / Optical IC
Sensor Mounting
Panel, Through Hole
Operating Temperature Max
75°C
Qualification
-
Sensing Distance / Slot Width
3.4mm
Supply Voltage Min
4.5VDC
Aperture Width
0.5mm
Sensor Case / Package
Module
Collector Emitter Voltage Max
-
Forward Voltage
1.2V
IP Rating
-
Operating Temperature Min
-40°C
Product Range
-
SVHC
No SVHC (17-Dec-2014)
Technical Docs (1)
Associated Products
3 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Tariff No:85414090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Dec-2014)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.005
