EV-OXU210-PCI

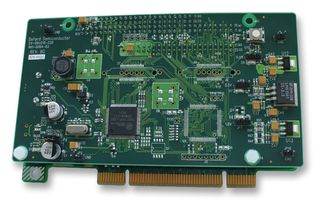

The EV‐OXU210‐PCI evaluation board is a system for OXU210HP customer evaluations and internal software development in the PC environment. The evaluation board allows the user to install and use the EV‐OXU210 in any PCI based computer. Application software running on the system has access to the OXU210HP via the PCI memory space. The evaluation board is a two board combination (An EV‐OXU210 evaluation board and a 33MHz, 32bit PCI bridge board, the PCI104). The PCI bridge board contains a PCI to local bus bridge chip that bridges the PCI bus to the OXU210HP. Power and control signals to the PCI bus are maintained by the PCI bridge chip set, while initialization and configuration of the PCI bridge chip is maintained by the on board serial EEPROM.

• High performance, high speed USB dual role (host/peripheral) controller
• Processor interface is either 16bits (BGA) or configurable 16bits or 32bits (LQFP)
• Fast microprocessor access cycle and double/multi buffering support for USB transfers
• 72Kbytes of single port SRAM provides space for data structure and buffer space for transfer data
• Integrated PLL runs from a single 12MHz crystal or an external 12MHz clock source
• Compatible with the USB 2.0 for high speed (480Mb/s), full speed (12Mb/s), and low speed (1.5Mb/s)
• Two high speed USB ports
• Integrated on chip VBUS voltage comparator and 100mA charge pump
• Advanced power management controls chip clocking and PHY function for very low power consumption

Applications

Portable Devices, Imaging, Video & Vision, Communications & Networking, Consumer Electronics, Industrial, Audio, Multimedia
