PRN.000.025.00013

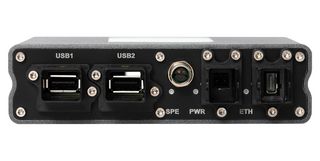

Modular Edge Computer, 1.33 GHz, 2GB RAM, ARM Cortex A9, ARMv7 Dual Core, USB
| Manufacturer | PERINET |
|---|---|
| Manufacturer Part No | PRN.000.025.00013Copy |
| Manufacturer Standard Lead Time | 20 weeks |
| Order Code | 4713225 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$1,134.270 (S$1,236.3543) |
Product Information
| Manufacturer | PERINET |
|---|---|
| Manufacturer Part No | PRN.000.025.00013Copy |
| Manufacturer Standard Lead Time | 20 weeks |
| Order Code | 4713225 |
| Technical Datasheet | |
| Processor Core Type | ARM Cortex A9, ARMv7 Dual Core |
| Core Number | Armada 385 |
| Silicon Family Name | - |
| Processor Speed | 1.33GHz |
| RAM Memory Size | 2GB |
| Kit Contents | Open Modular Edge Computer |
| Interfaces | USB |
| Operating System | Linux |
| Operating Temperature Range | -25°C to +75°C |
| Fanless | - |
| SVHC | No SVHC (21-Jan-2025) |
Product Overview
PRN.000.025.00013 is a dual core, 100Base-TX, 100BASE-T1, USB, IP20 periMICA modular edge computer for field-level IOT application, even in rough environments. The periMICA Edge Computer can be configured with the following hardware modules: Processor modules (P), Supply modules (S), Function modules (F). It hosts virtualized applications and provides a runtime for lightweight Linux-containers. Just as you would in the cloud, the periMlCA allows you to set up applications locally. So, migration of applications between the field and your IT infrastructure becomes easy. A periMICA is the Perfect tool for gathering and preprocessing data: Straight from the field-level, where sensors and actuators are networked by the Perinet Smart Components.
- Cortex A9, ARMv7 1.33GHz dual core, 2GB RAM, 16GB eMMC
- Brand labelling supported, user-friendly web-based UI and IOT native: IPv6, Secure by design (mTLS)
- Various Ethernet options: Fast Ethernet (IOOBASE-TX) and single Pair Ethernet (IOOBASE-TI)
- RESTfuI API, open source software and customizable hard- & software
- Containerized S/W (LXC): MQTT broker, Dashboard editor, PK12GO, user-friendly security
- Containerized S/W (LXC): MODBUS-TCP bridge, JTAG debug container
- Aluminium housing material
- LEDs to indicate the operating status
- Operation temperature range from -25 to +75°C and relative humidity is 5 to 95% non-condensing
- Dimension is 132mm x 35mm x 86mm
Technical Specifications
| Processor Core Type | ARM Cortex A9, ARMv7 Dual Core |
|---|---|
| Silicon Family Name | - |
| RAM Memory Size | 2GB |
| Interfaces | USB |
| Operating Temperature Range | -25°C to +75°C |
| SVHC | No SVHC (21-Jan-2025) |
| Core Number | Armada 385 |
|---|---|
| Processor Speed | 1.33GHz |
| Kit Contents | Open Modular Edge Computer |
| Operating System | Linux |
| Fanless | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84715000 |
| US ECCN: | 5A992.c |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| SVHC: | No SVHC (21-Jan-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .65 |
