3780-60-0

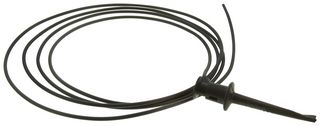

Test Lead, Minigrabber, Hook Clip to Free End, Black, 60 V, 5 A, 1.524 m
Image is for illustrative purposes only. Please refer to product description.
ManufacturerPOMONA
Manufacturer Part No3780-60-0
Order Code2406162
Product Range3780 Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 6 week(s)
Notify me when back in stock
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$14.000 (S$15.260) |
Price for:Each
Minimum: 1
Multiple: 1
S$14.00 (S$15.26 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerPOMONA
Manufacturer Part No3780-60-0
Order Code2406162
Product Range3780 Series
Technical Datasheet
Grabber Test Lead TypeHook Clip
Lead Length - Imperial59"
Lead Length - Metric1.5m
Insulator ColourBlack
Current Rating5A
Voltage Rating60VDC
Product Range3780 Series
SVHCNo SVHC (15-Jun-2015)
Product Overview
The 3780-60-0 is a Test Lead with Minigrabber® test clip one end only. The Minigrabber® clip has gold-plated beryllium copper contact, stainless steel spring, UL94V-0 fire-retardant nylon 6 insulation and 20AWG PVC insulated wire. The gold-plated beryllium copper hook for superb strength and low contact resistance to ensure signal integrity. The stainless steel grabber compression spring resists corrosion and retains a firm feel throughout the life of the grabber. Flexible 20 gauge multi-stranded wire is moulded directly to the grabber actuator cap and pin tip plug for durability.
- Grabber attaches to terminals sizes up to 0.06" (1.5mm)
- Minigrabber® Test clip (one end only) allows customization of the open end
- 102°C Maximum operating temperature
Applications
Test & Measurement
Technical Specifications
Grabber Test Lead Type
Hook Clip
Lead Length - Metric
1.5m
Current Rating
5A
Product Range
3780 Series
Lead Length - Imperial
59"
Insulator Colour
Black
Voltage Rating
60VDC
SVHC
No SVHC (15-Jun-2015)
Technical Docs (1)
Alternatives for 3780-60-0
1 Product Found
Associated Products
4 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:90309000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (15-Jun-2015)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.027
