RDK-919Q
Reference Design Kit, INN3949CQ, Power Management, Isolated Flyback Power Supply

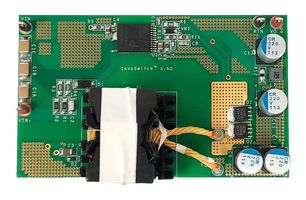

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | POWER INTEGRATIONS |
|---|---|
| Manufacturer Part No | RDK-919QCopy |
| Order Code | 4059647 |
| Your Part Number | |
| Technical Datasheet |
No Longer Manufactured
Product Information
| Manufacturer | POWER INTEGRATIONS |
|---|---|
| Manufacturer Part No | RDK-919QCopy |
| Order Code | 4059647 |
| Technical Datasheet | |
| Silicon Manufacturer | Power Integrations |
| Silicon Core Number | INN3949CQ |
| Kit Application Type | Power Management |
| Application Sub Type | Isolated Flyback Power Supply |
| Core Architecture | - |
| Core Sub-Architecture | - |
| Silicon Family Name | InnoSwitch3-AQ |
| Kit Contents | Reference Design Board INN3949CQ |
| Product Range | - |
| SVHC | No SVHC (15-Jan-2018) |
Product Overview
RDK-919Q is a reference design kit for a 60W isolated flyback power supply using InnoSwitch™ 3-AQ INN3949CQ.
- Input voltage range from 50 to 1000VDC
- Works in extreme hot condition: 85°C with continuous 20W operation at 1000VDC input
- InnoSwitch™3-AQ – industry first AC/DC ICs with isolated, safety rated integrated feedback
- Built-in synchronous rectification for <gt/>82% efficiency
- All the benefits of secondary-side control with the simplicity of primary-side regulation
Technical Specifications
| Silicon Manufacturer | Power Integrations |
|---|---|
| Kit Application Type | Power Management |
| Core Architecture | - |
| Silicon Family Name | InnoSwitch3-AQ |
| Product Range | - |
| Silicon Core Number | INN3949CQ |
|---|---|
| Application Sub Type | Isolated Flyback Power Supply |
| Core Sub-Architecture | - |
| Kit Contents | Reference Design Board INN3949CQ |
| SVHC | No SVHC (15-Jan-2018) |
