AB2063B-2-LW50
Piezo Bender, 6.3 kHz, 10 nF, 350 ohm, 20 mm D x 0.42 mm H

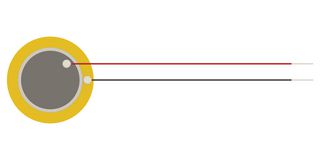

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Notify me when back in stock
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$0.682 (S$0.7434) |
| 5+ | S$0.582 (S$0.6344) |
| 10+ | S$0.481 (S$0.5243) |
| 20+ | S$0.471 (S$0.5134) |
| 40+ | S$0.461 (S$0.5025) |
| 100+ | S$0.451 (S$0.4916) |
Price for:Each
Minimum: 1
Multiple: 1
S$0.68 (S$0.74 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Overview
AB2063B-2-LW50 is an ultrathin and lightweight 20mm bender. It features 50mm lead wires for easy installation.
- 6300Hz resonant frequency
- ≤ 350 ohm maximum resonant impedance
- 30Vp-p maximum input voltage
- 10,000pF ±30% capacitance at 120Hz
- Brass plate material, round shape
- Dimension is 0.42 x 20 x 20mm (H x W x L)
- Operating temperature range from -20°C to 70°C
Technical Specifications
Transducer Function
Bender
Resonant Frequency
6.3kHz
Capacitance
10nF
External Height
0.42mm
SVHC
No SVHC (21-Jan-2025)
Element Type
Piezo
Resonant Resistance
350ohm
External Diameter
20mm
Product Range
-
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85318040
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.01
