342A012-25-0
Heat Shrink Boot, Moulded 45°, Side Transition, 0.52 ", 13.2 mm, Black, 1.94 ", 49.3 mm

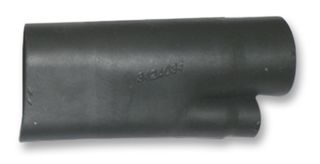

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTE CONNECTIVITY - RAYCHEM
Manufacturer Part No342A012-25-0
Order Code1296872
Also Known As878518-000
Your Part Number
Technical Datasheet
324 In Stock
Need more?
324 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$56.230 (S$61.2907) |
| 5+ | S$52.010 (S$56.6909) |
| 10+ | S$47.790 (S$52.0911) |
| 25+ | S$44.810 (S$48.8429) |
| 50+ | S$42.970 (S$46.8373) |
Price for:Each
Minimum: 1
Multiple: 1
S$56.23 (S$61.29 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTE CONNECTIVITY - RAYCHEM
Manufacturer Part No342A012-25-0
Order Code1296872
Also Known As878518-000
Technical Datasheet
Boot ConfigurationSide Transition
I.D. Supplied - Imperial0.52"
I.D. Supplied - Metric13.2mm
Shrink Tubing / Boot ColourBlack
Total Length - Imperial1.94"
Total Length - Metric49.3mm
I.D. Recovered Max - Imperial0.27"
I.D. Recovered Max - Metric6.9mm
Shrink Tubing / Boot MaterialElastomer
Shrink Ratio1.8:1
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 342A012-25-0 is a black Heat-shrink Boot made of fluid-resistant elastomer with side transition configuration. This tubing is designed to provide high temperature fluid resistance and long term heat resistance, wherever there is connector, junction or break-out in cable harness. It provides strain relief and mechanical protection on cable harness assemblies. Suitable for long-term exposure at elevated temperatures fluids/chemical resistance.
- 2 Branches/legs
- Excellent chemical and abrasion resistance
- Excellent resistance to high temperature fluids
- -75 to 150°C Operating temperature range
- Flame-retardant
Applications
Industrial, Aerospace, Defence, Military, Communications & Networking, Test & Measurement, Commercial
Technical Specifications
Boot Configuration
Side Transition
I.D. Supplied - Metric
13.2mm
Total Length - Imperial
1.94"
I.D. Recovered Max - Imperial
0.27"
Shrink Tubing / Boot Material
Elastomer
Product Range
-
I.D. Supplied - Imperial
0.52"
Shrink Tubing / Boot Colour
Black
Total Length - Metric
49.3mm
I.D. Recovered Max - Metric
6.9mm
Shrink Ratio
1.8:1
SVHC
No SVHC (21-Jan-2025)
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Czech Republic
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Czech Republic
Country in which last significant manufacturing process was carried out
Tariff No:39269097
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000544
