RT-ZC05B
Current Probe, BNC, Current Clamp, 500 A, R&S RTM3000/RTA4000, RTE1000, RTO2000 Oscilloscopes

| Manufacturer | ROHDE & SCHWARZ |
|---|---|
| Manufacturer Part No | RT-ZC05BCopy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 3771199 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$15,939.890 (S$17,374.4801) |
Product Information
| Manufacturer | ROHDE & SCHWARZ |
|---|---|
| Manufacturer Part No | RT-ZC05BCopy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 3771199 |
| Technical Datasheet | |
| Meter Side Connector | BNC |
| Probe Side Connector | Current Clamp |
| Current Range Max | 500A |
| Current Range Min | - |
| For Use With | R&S RTM3000/RTA4000, RTE1000, RTO2000 Oscilloscopes |
| Product Range | - |
| SVHC | To Be Advised |
Product Overview

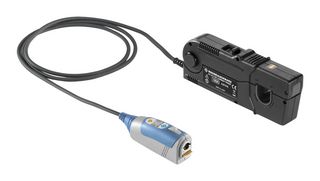

RT-ZC05B is an AC/DC current probe. It allows the user to make current measurements from DC to 2MHz. By clamping on the conductor to be measured, the current waveform is captured easily without interrupting the electric circuit. Since the probe is equipped with the Rohde & Schwarz probe interface, it can be connected to any Rohde & Schwarz base unit that is compatible with this interface. When connected to the front panel of a Rohde & Schwarz oscilloscope, the probe is controlled using the software of the oscilloscope.
- Highly accurate current detection
- Easy current measurement without interrupting the electric circuit
- Large diameter allows high-current measurements
- Easy protection function to avoid self-heating during excessive input
- Unique thin film hall effect element
Contents
AC/DC current probe, User manual, Carrying case, R&S RT-Zxx data sheet, Calibration certificate, Documentation of calibrated values.
Technical Specifications
| Meter Side Connector | BNC |
|---|---|
| Current Range Max | 500A |
| For Use With | R&S RTM3000/RTA4000, RTE1000, RTO2000 Oscilloscopes |
| SVHC | To Be Advised |
| Probe Side Connector | Current Clamp |
|---|---|
| Current Range Min | - |
| Product Range | - |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Japan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90309000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 1.503 |
