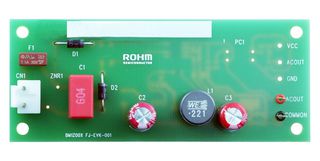

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | ROHM |
|---|---|
| Manufacturer Part No | BM1Z002FJ-EVK-001Copy |
| Manufacturer Standard Lead Time | 18 weeks |
| Order Code | 3501926 |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 18 week(s)
Notify me when back in stock
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$74.710 (S$81.4339) |
Price for:Each
Minimum: 1
Multiple: 1
S$74.71 (S$81.43 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | ROHM |
|---|---|
| Manufacturer Part No | BM1Z002FJ-EVK-001Copy |
| Manufacturer Standard Lead Time | 18 weeks |
| Order Code | 3501926 |
| Technical Datasheet | |
| Silicon Manufacturer | Rohm Semiconductor |
| Silicon Core Number | BM1Z002FJ |
| Kit Application Type | Power Management |
| Application Sub Type | AC Voltage Zero Cross Detection |
| Kit Contents | Evaluation Board BM1Z002FJ |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
- AC voltage zero cross detection IC BM1Z002FJ evaluation board
- Outputs a zero cross signal from 90VAC to 264VAC input
- Mounted with BM1Z002FJ which outputs high precision zero cross timing of targeted AC voltage
- BM1Z002FJ gives power less down to 1/10 of conventional zero cross signal generator circuit consumed
- Also mounted with power supply for the IC
- 47Hz to 63Hz input frequency
- 4.75V to 5.25V output voltage (high level), 0.0V to 0.1V output voltage (low level)
- Operating temperature range from-10°C to 65°C
Technical Specifications
| Silicon Manufacturer | Rohm Semiconductor |
|---|---|
| Kit Application Type | Power Management |
| Kit Contents | Evaluation Board BM1Z002FJ |
| SVHC | No SVHC (25-Jun-2025) |
| Silicon Core Number | BM1Z002FJ |
|---|---|
| Application Sub Type | AC Voltage Zero Cross Detection |
| Product Range | - |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Japan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .02 |
