TCSD-05-01-N

IDC Connector, IDC Receptacle, Female, 2 mm, 2 Row, 10 Contacts, Cable Mount

SAMTEC TCSD-05-01-N

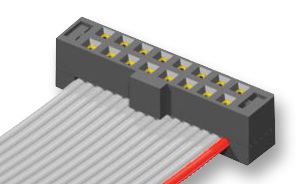

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
SAMTEC SAMTEC
Manufacturer Part No:
TCSD-05-01-N
Order Code:
1753857
Product Range
TCSD Series
Technical Datasheet:
TCSD-05-01-N   Datasheet
See all Technical Docs

Product Range Selector (TCSD Series)

See all from this product range

Product Overview

The TCSD-05-01-N is a 10-way 2-row IDC Ribbon Cable Socket with gold-plated beryllium copper contacts, 2mm pitch spacing, IDC/IDT termination, high reliability Tiger Eye™ contacts and PVC insulator, Mating shrouded terminal strips and ejector headers. Mates with EHT, ETMM, MMT, MTMM, STMM, TMM, TMMH, TW-SM, TW-TH and ZSTMM connectors.
  • Grey colour
  • 2.8A Current rating
  • 15mR Contact resistance
  • 28AWG, 7/36 stranded, tinned, copper wire with gray PVC insulator
  • Black glass filled polyester insulator
  • Operating temperature range from -40°C to +105°C
  • Contact resistance is 15mohm
  • Beryllium copper (BeCu) contacts with 30µ" (0.76µm) gold plating on contact area

Applications

Industrial

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
IDC Receptacle

:
Female

:
2mm

:
2 Row

:
10Contacts

:
Cable Mount

:
Beryllium Copper

:
Gold Plated Contacts

:
TCSD Series

Find similar products Choose and modify the attributes above to find similar products.
