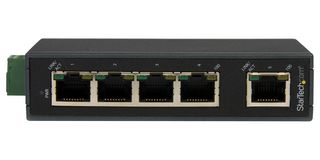

IES5102

IES5102 is a 5-port industrial Ethernet switch engineered to deliver fast, reliable network connectivity and durability in the most demanding industrial environments. It provides top performance in a wider range of operating temperatures than conventional network switches, making it ideal for factories and warehouses. Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives user the flexibility to power the switch as required, based on user's own power input source, while its wide operating temperature keeps the network running smoothly. This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets. Now user can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives user full/half-duplex auto-negotiation and auto MDI/MDIX operation.

• Wide-range 12-48V DC terminal block input
• Easy installation with an integrated DIN rail bracket
• Wider range of operating temperatures, ideal for industrial environments
• IEEE 802.3az energy-efficient Ethernet
• Supports 10BaseT/100BaseTX and Full-Duplex/Half-Duplex Auto-negotiation
• Supports IEEE 802.3x flow control and back pressure
• Store-and-forward switching mechanism

Contents

1 x 5 port Ethernet switch (w/ attached DIN rail bracket), 1 x terminal block, 1 x instruction manual CD.
