B-LVDS7-WSVGA

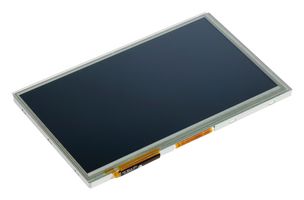

TFT LCD Module, LVDS / Capacitive Touchscreen, 7" WSVGA, STM32 Boards
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | STMICROELECTRONICS |
|---|---|
| Manufacturer Part No | B-LVDS7-WSVGACopy |
| Manufacturer Standard Lead Time | 34 weeks |
| Order Code | 4544008 |
| Your Part Number | |
| Technical Datasheet |
9 In Stock
19 more incoming. You can reserve stock now
9 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$266.150 (S$290.1035) |
Price for:Each
Minimum: 1
Multiple: 1
S$266.15 (S$290.10 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | STMICROELECTRONICS |
|---|---|
| Manufacturer Part No | B-LVDS7-WSVGACopy |
| Manufacturer Standard Lead Time | 34 weeks |
| Order Code | 4544008 |
| Technical Datasheet | |
| Accessory Type | 0 |
| For Use With | STMicroelectronics STM32MP257F-EV1 Evaluation Board, STM32MP257F-DK Discovery Kit |
| Kit Contents | 7" WSVGA TFT LCD Module |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
B-LVDS7-WSVGA is a LVDS TFT LCD module for STM32 boards.
- 7.0” display size
- Format: 1024 (RGB) × 600 pixels
- 16.7M display colours
- Overall dimensions (W × H × D): 166.2 x 100.3 x 11mm
- Active area (W × H): 154.2144 × 85.92 mm
- IPS LCD type
- Super wide viewing direction
- LVDS interface mode
- Multitouch (five fingers) capacitive touch panel
- 3.3V power supply for LCD and touch panel, 5V power supply for backlight
Technical Specifications
| Accessory Type | 0 |
|---|---|
| Kit Contents | 7" WSVGA TFT LCD Module |
| SVHC | No SVHC (25-Jun-2025) |
| For Use With | STMicroelectronics STM32MP257F-EV1 Evaluation Board, STM32MP257F-DK Discovery Kit |
|---|---|
| Product Range | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85249100 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .736906 |
