SPC564A70CAL176
VertiCal Base Board, Calibration/Emulation System, 32Bit, QFP-176, SPC5, Power Architecture, e200z4

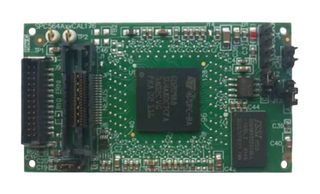

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSTMICROELECTRONICS
Manufacturer Part NoSPC564A70CAL176
Order Code4749240
Your Part Number
Technical Datasheet
1 In Stock
Need more?
1 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$1,554.640 (S$1,694.5576) |
Price for:Each
Minimum: 1
Multiple: 1
S$1,554.64 (S$1,694.56 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerSTMICROELECTRONICS
Manufacturer Part NoSPC564A70CAL176
Order Code4749240
Technical Datasheet
IC Product TypeCalibration / Emulation System
Silicon Family NameSPC5
Core ArchitecturePower Architecture
Core Sub-Architecturee200z4
Kit ContentsVertical Base Board SPC564A70
FeaturesCalibration Adapter Designed to Substitute QFP Device on ECU Version Used During Engine Calibration
Product Range-
SVHCNo SVHC (25-Jun-2025)
Product Overview
SPC564A70CAL176 is a calibration and emulation system that consists of a SPC564A70CAL176 board and a POLYPOD-TQ176 Poly-Pod which plugs directly into the motherboard. Support for LQFP176 MCU production package allowing calibration systems to be built without requiring modifications to the standard production system housing.
- 2MB static RAM organized as 512K words by 32bits
- 32-bit multiplexed calibration bus configuration
- Support for Nexus-based debug tools even if application PCB does not include Nexus connector
- Nexus functionality with 12 Message Data Out (MDO) signals
- Support for full-feature calibration tools
- ERNI 154819 connector optimized for calibration
- High speed CAN transceiver with signals protection
- Board size 36 x 64.5mm
- Target connector compatible with TQPACK176SD
