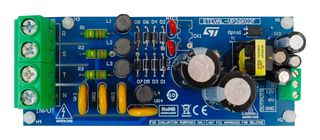

STEVAL-VP26K02F
EVAL BOARD, ISOLATED FLYBACK CONVERTER
- Manufacturer:
- STMICROELECTRONICS STMICROELECTRONICS
- Manufacturer Part No:
- STEVAL-VP26K02F
- Order Code:
- 3262496
Product Overview
Evaluation board implements a double output isolated SSR flyback specifically designed to supply smart meter and PLC systems. The evaluation board has been developed using the VIPER267KDTR offline high-voltage converter which features a 1050V avalanche-rugged power section, PWM operation at 60KHz with frequency jittering for lower EMI, current limiting with 700 mA fixed set point, on-board soft-start, safe auto-restart after fault and low standby power. The power supply provides 12V at 700mArms (1A peak) to the power line modem (PLM) and the analogue circuitry, and 6 V at 200 mA to supply digital circuitry and other low voltage parts. The power supply is designed to operate across a three-phase input mains from 50 to 290VAC but can also be connected to a single phase mains from 85 to 500VAC.
- Secondary side regulation (SSR)
- EMC with EN55022, EN61000, EN61000-4-4, EN61000-4-5, EN61000-4-6
Footnotes
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- STMicroelectronics
- :
- VIPER267KDTR
- :
- Power Management
- :
- Isolated Flyback Converter
- :
- Eval Board VIPER267KDTR
- :
- -
