AGPDFD6010A
Evaluation Board, GPDF6010.A, GNSS Stacked Patch Antenna
| Manufacturer | TAOGLAS |
|---|---|
| Manufacturer Part No | AGPDFD6010ACopy |
| Manufacturer Standard Lead Time | 18 weeks |
| Order Code | 4680925 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$92.190 (S$100.4871) |
| 5+ | S$90.350 (S$98.4815) |
| 10+ | S$90.160 (S$98.2744) |
| 50+ | S$90.150 (S$98.2635) |
Product Information
| Manufacturer | TAOGLAS |
|---|---|
| Manufacturer Part No | AGPDFD6010ACopy |
| Manufacturer Standard Lead Time | 18 weeks |
| Order Code | 4680925 |
| Technical Datasheet | |
| Silicon Manufacturer | Taoglas |
| Silicon Core Number | GPDF6010.A |
| Kit Application Type | Wireless Communication |
| Application Sub Type | GNSS Stacked Patch Antenna |
| Core Architecture | - |
| Core Sub-Architecture | - |
| Silicon Family Name | - |
| Kit Contents | Evaluation Board GPDF6010.A with TFM.120A and 2x HC125A 101mm Dia x 1.59mm Circular PCB |
| Product Range | - |
| SVHC | No SVHC (21-Jan-2025) |
Product Overview

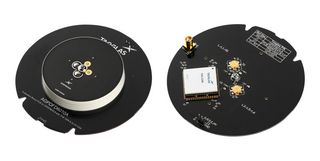

AGPDFD6010A is an evaluation board for GPDF6010.A with TFM.120A & 2x HC125AØ101×1.59mm circular PCB. The optimum active electronics design for passive GNSS L1/L2/L5/L-band antenna integrated TFM module and hybrid coupler. The single-package solution combines impedance matching, filter efficiency and low noise design for easy, drop-in use with any antenna or GNSS receiver. Integrated pre-filters deliver exceptional out-of-band rejection across multiple band configurations and neighbouring interference to properly set noise figure. Cascaded LNAs, pre-filters and optimized impedance matching deliver sufficient gain to the GNSS receiver without signal-to-noise overload. Small footprint and low-profile design save valuable real estate without the need for external components and routing. The 2+ years of development by antenna and RF design experts, delivering the highest levels of integration, manufacturability and robustness in a single package.
- Ease-of-integration
- Low-noise system design
- Dual-gain stage architecture
- Low-profile form factor
- Accelerated development cycles
- Bands covered: BeiDou (B1/B2a), GPS/QZSS (L1/L5), GLONASS (G1), Galileo (E1/E5a), L band corrections
- Dual pin, dual feed, 4-pin configuration
- Dimension is 45 x 45 x 10mm
Technical Specifications
| Silicon Manufacturer | Taoglas |
|---|---|
| Kit Application Type | Wireless Communication |
| Core Architecture | - |
| Silicon Family Name | - |
| Product Range | - |
| Silicon Core Number | GPDF6010.A |
|---|---|
| Application Sub Type | GNSS Stacked Patch Antenna |
| Core Sub-Architecture | - |
| Kit Contents | Evaluation Board GPDF6010.A with TFM.120A and 2x HC125A 101mm Dia x 1.59mm Circular PCB |
| SVHC | No SVHC (21-Jan-2025) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85437090 |
| US ECCN: | 7A994 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (21-Jan-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .00001 |
