AHPD24510A

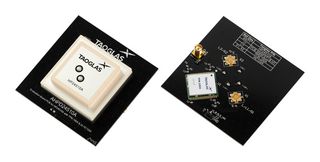

Evaluation Board, HP24510A, GNSS L1/L2 Stacked Patch Antenna
| Manufacturer | TAOGLAS |
|---|---|
| Manufacturer Part No | AHPD24510ACopy |
| Manufacturer Standard Lead Time | 18 weeks |
| Order Code | 4680927 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$66.310 (S$72.2779) |
| 5+ | S$64.990 (S$70.8391) |
| 10+ | S$63.660 (S$69.3894) |
| 50+ | S$62.340 (S$67.9506) |
| 100+ | S$61.010 (S$66.5009) |
Product Information
| Manufacturer | TAOGLAS |
|---|---|
| Manufacturer Part No | AHPD24510ACopy |
| Manufacturer Standard Lead Time | 18 weeks |
| Order Code | 4680927 |
| Technical Datasheet | |
| Silicon Manufacturer | Taoglas |
| Silicon Core Number | HP24510A |
| Kit Application Type | Wireless Communication |
| Application Sub Type | GNSS L1/L2 Stacked Patch Antenna |
| Core Architecture | - |
| Core Sub-Architecture | - |
| Silicon Family Name | - |
| Kit Contents | Evaluation Board HP24510A with TFM.100A and 2x HC125A |
| Product Range | - |
| SVHC | No SVHC (21-Jan-2025) |
Product Overview
AHPD24510A is an evaluation board for HP24510A with TFM.100A. The optimum active electronics design for passive GNSS L1/L2 antenna integrated TFM module and hybrid coupler. The single-package solution combines impedance matching, filter efficiency and low noise design for easy, drop-in use with any antenna or GNSS receiver. Integrated pre-filters deliver exceptional out-of-band rejection across multiple band configurations and neighbouring interference to properly set noise figure. Cascaded LNAs, pre-filters and optimized impedance matching deliver sufficient gain to the GNSS receiver without signal-to-noise overload. Small footprint and low-profile design save valuable real estate without the need for external components and routing. The 2+ years of development by antenna and RF design experts, delivering the highest levels of integration, manufacturability and robustness in a single package.
- Ease-of-integration
- Low-noise system design
- Dual-gain stage architecture
- Low-profile form factor
- Accelerated development cycles
- Bands covered: BeiDou (B1/B2b)), GPS/QZSS (L1/L2), GLONASS (G1/G2/G3), Galileo (E1/E5b)
