AHPD5354A

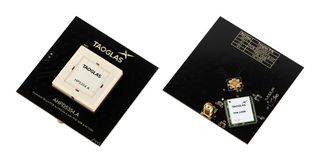

Evaluation Board, HP5354.A, GNSS L1/L5 Patch Antenna
| Manufacturer | TAOGLAS |
|---|---|
| Manufacturer Part No | AHPD5354ACopy |
| Manufacturer Standard Lead Time | 18 weeks |
| Order Code | 4680929 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$55.330 (S$60.3097) |
| 5+ | S$54.230 (S$59.1107) |
| 10+ | S$53.120 (S$57.9008) |
| 50+ | S$52.020 (S$56.7018) |
| 100+ | S$50.910 (S$55.4919) |
Product Information
| Manufacturer | TAOGLAS |
|---|---|
| Manufacturer Part No | AHPD5354ACopy |
| Manufacturer Standard Lead Time | 18 weeks |
| Order Code | 4680929 |
| Technical Datasheet | |
| Silicon Manufacturer | Taoglas |
| Silicon Core Number | HP5354.A |
| Kit Application Type | Wireless Communication |
| Application Sub Type | GNSS L1/L5 Patch Antenna |
| Core Architecture | - |
| Core Sub-Architecture | - |
| Silicon Family Name | - |
| Kit Contents | Evaluation Board HP5354.A with TFM.100B and HC125A |
| Product Range | - |
| SVHC | No SVHC (21-Jan-2025) |
Product Overview
AHPD5354A is an evaluation board for HP5354.A with TFM.100B. The optimum active electronics design for passive GNSS L1/L5 antenna integrated TFM module and hybrid coupler. The single-package solution combines impedance matching, filter efficiency and low noise design for easy, drop-in use with any antenna or GNSS receiver. Integrated pre-filters deliver exceptional out-of-band rejection across multiple band configurations and neighbouring interference to properly set noise figure. Cascaded LNAs, pre-filters and optimized impedance matching deliver sufficient gain to the GNSS receiver without signal-to-noise overload. Small footprint and low-profile design save valuable real estate without the need for external components and routing. The 2+ years of development by antenna and RF design experts, delivering the highest levels of integration, manufacturability and robustness in a single package.
- Ease-of-integration
- Low-noise system design
- Dual-gain stage architecture
- Low-profile form factor
- Accelerated development cycles
- Bands covered: BeiDou (B1/B2a)), GPS/QZSS (L1/L5), GLONASS (G1), Galileo (E1/E5a)
Technical Specifications
| Silicon Manufacturer | Taoglas |
|---|---|
| Kit Application Type | Wireless Communication |
| Core Architecture | - |
| Silicon Family Name | - |
| Product Range | - |
| Silicon Core Number | HP5354.A |
|---|---|
| Application Sub Type | GNSS L1/L5 Patch Antenna |
| Core Sub-Architecture | - |
| Kit Contents | Evaluation Board HP5354.A with TFM.100B and HC125A |
| SVHC | No SVHC (21-Jan-2025) |
