| Manufacturer | TDK INVENSENSE |
|---|---|
| Manufacturer Part No | DK-42352Copy |
| Manufacturer Standard Lead Time | 113 weeks |
| Order Code | 3954646 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$182.250 (S$198.6525) |
Product Information
| Manufacturer | TDK INVENSENSE |
|---|---|
| Manufacturer Part No | DK-42352Copy |
| Manufacturer Standard Lead Time | 113 weeks |
| Order Code | 3954646 |
| Technical Datasheet | |
| Board Type | Development Board |
| IC / Module Used | IIM-42352 |
| Application Sub Type | Accelerometer - Three-Axis |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview

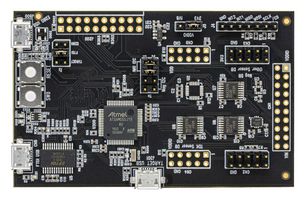

DK-42352 is a development kit (DK) for IIM-42352, a 3-axis SmartIndustrial™ MotionTracking device that supports robust and accurate inertial and vibration measurements. Developers can use the platform, designed around Microchip G55 MCU for rapid evaluation and development of IIM-42352 based solutions. The DK-42352 includes an on-board Embedded Debugger so external tools are not required to program or debug the G55 MCU. The development kit comes with necessary software including InvenSense Motion Link, a GUI based development tool and embedded Motion Drivers for IIM-42352. Embedded Motion Drivers (eMD) consists of a set of APIs to configure various aspects of the platform including IIM-42352 sensor parameters such as full-scale range (FSR), output data rate (ODR), low-power or low-noise mode, and sensor interface to host (I3C℠, I²C, SPI).
- MotionLink is a GUI based development tool included with the platform
Technical Specifications
| Board Type | Development Board |
|---|---|
| Application Sub Type | Accelerometer - Three-Axis |
| IC / Module Used | IIM-42352 |
|---|---|
| SVHC | No SVHC (25-Jun-2025) |
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366930 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000001 |
