23EXA103KMJ16N

Rotary Potentiometer, Spindle Operated, 10 kohm, 1 Turns, Linear, 400 mW, ± 10%, 23EXA Series

TE CONNECTIVITY 23EXA103KMJ16N

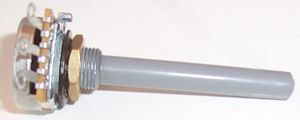

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
23EXA103KMJ16N
Order Code:
1863395
Product Range
23EXA Series
Also Known As:
1-1624217-0, 23E 10KA 10% 6.35X16FL B8 DET21
Technical Datasheet:
23EXA103KMJ16N   Datasheet
See all Technical Docs

Product Range Selector (23EXA Series)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
10kohm

:
1Turns

:
Linear

:
400mW

:
± 10%

:
23EXA Series

:
Through Hole

:
-

:
1

:
Rotary

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (1)

Product Overview

The 23EXA103KMJ16N is a 10kR 400mW 1-turn 1-gang through hole-mounting Rotary Potentiometer with screwdriver slot adjustment and linear track taper. The type 23 series potentiometer features printed carbon resistance element, 5.5mm flatted shaft, eyelet terminals and versatile design can be customized to suit the requirements.
  • Rugged construction
  • Mounting bracket
  • Die-cast 3/8"x8mm with location lug and 6.35mm hole bush

Also Known As

1-1624217-0, 23E 10KA 10% 6.35X16FL B8 DET21
