T4111001041-000

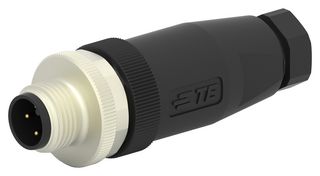

Sensor Connector, PG7/4-6mm, M12, Male, 4 Positions, Screw Pin, Straight Cable Mount
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | TE CONNECTIVITY |
|---|---|
| Manufacturer Part No | T4111001041-000Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 2627771 |
| Your Part Number | |
| Technical Datasheet |
2,645 In Stock
Need more?
42 Next business day delivery available(SG stock)
2,603 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$10.900 (S$11.881) |
| 10+ | S$9.270 (S$10.1043) |
| 100+ | S$7.880 (S$8.5892) |
| 250+ | S$7.380 (S$8.0442) |
| 500+ | S$7.030 (S$7.6627) |
| 1000+ | S$6.700 (S$7.303) |
Price for:Each
Minimum: 1
Multiple: 1
S$10.90 (S$11.88 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | TE CONNECTIVITY |
|---|---|
| Manufacturer Part No | T4111001041-000Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 2627771 |
| Technical Datasheet | |
| Product Range | - |
| Sensor Connector Size | M12 |
| Sensor Connector Gender | Male |
| No. of Positions | 4 Positions |
| Sensor Contact Type | Screw Pin |
| Sensor Connector Mounting | Straight Cable Mount |
| IP / NEMA Rating | IP67 |
| Connector Coding | A Coded |
| Connector Body Material | PBT (Polybutylene Terephthalate), Glass Filled Body |
| Contact Material | Brass |
| Contact Plating | Gold |
| Current Rating | 4A |
| Voltage Rating | 250V |
| SVHC | Lead (04-Feb-2026) |
Product Overview
T4111001041-000 is a 4-pole, M12 field installable connector.
- A coding, M12 male screw connection, straight, unshielded connector
- PG7 cable outlet
- Threaded coupling
- Cable mount (free-hanging)
- 250V, 4A rated
- IP67 rating
- Operating temperature range from -40 to 85°C (-40 to 185°F)
Technical Specifications
| Product Range | - |
|---|---|
| Sensor Connector Gender | Male |
| Sensor Contact Type | Screw Pin |
| IP / NEMA Rating | IP67 |
| Connector Body Material | PBT (Polybutylene Terephthalate), Glass Filled Body |
| Contact Plating | Gold |
| Voltage Rating | 250V |
| Sensor Connector Size | M12 |
|---|---|
| No. of Positions | 4 Positions |
| Sensor Connector Mounting | Straight Cable Mount |
| Connector Coding | A Coded |
| Contact Material | Brass |
| Current Rating | 4A |
| SVHC | Lead (04-Feb-2026) |
Associated Products
6 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .024 |
