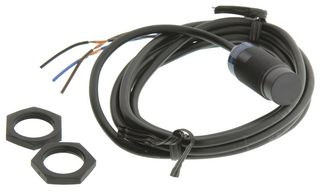

XS4P18AB110

The XS4P18AB110 from Schneider Electric / Telemecanique is a application series OsiSense XS inductive proximity sensor XS4 for non contact sensing of metal objects. It features best in class quality and immunity to harsh industrial environments. An inductive proximity sensor is comprises an oscillator whose windings constitute sensing face. An alternating magnetic field is generated in front of these windings. When a metal object is placed within magnetic field generated by sensor, the resulting currents induced form additional load and oscillations cease. This causes output driver to operate and depending on sensor type (NO or NC output signal). This sensor enables detection without physical contact of metals. It's range of applications includes monitoring position of machine parts (cams, end stops), counting presence of metal objects. It also used in assembly machines, machine tools, machining, packaging, materials handling, conveying, food and beverage industry.

• 41mm size, fixed body, non flush mountable detector, plastic material, pre-cabled (L = 2m)
• Analogue output signal, 3-wire wiring technique, 1 NC discrete output function, small size
• 8mm nominal sensing distance, DC output circuit type, cylindrical M18 sensor design, M18 x 1 thread
• 0.8 to 8mm operating zone, PvR wire insulation material
• Rated supply voltage from 12VDC to 48VDC, weight is 0.08Kg
• 0 to 10V analogue output range
• IP67 conforming to IEC 60529 degree of protection
• Frontal detection face, PPS front material, PBT enclosure material
• <lt/>= 500Hz switching frequency, 4mA (no-load) current consumption
• CE marked, UL, CCC and CSA certified, -25°C to 70°C ambient air temperature for operation

Applications

Automation & Process Control, Industrial, Robotics, Sensing & Instrumentation
