XY2CH13250H7
Grabwire Switch, 30 m, SPST-NO, SPST-NC, 250 V, 3 A, 250 V, 270 mA
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer Part No | XY2CH13250H7Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 2765706 |
| Product Range | Preventa XY2C Series |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$460.260 (S$501.6834) |
Product Information
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer Part No | XY2CH13250H7Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 2765706 |
| Product Range | Preventa XY2C Series |
| Technical Datasheet | |
| Cable Span | 30m |
| Contact Configuration | SPST-NO, SPST-NC |
| Contact Voltage AC Max | 250V |
| Contact Current AC Max | 3A |
| Contact Voltage DC Max | 250V |
| Contact Current DC Max | 270mA |
| Product Range | Preventa XY2C Series |
Product Overview

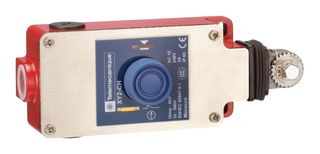

The XY2CH13250H7 is a latching emergency stop Rope Pull Switch with Zamak body and stainless steel cover. This e-stop rope pull booted pushbutton switch features red RAL 3000 housing, reset by booted push-button, screw clamp terminal and 1NC + 1NO slow-break contacts. This XY2CH series switch is suitable for use with the Preventa XY2 range products. It meets the EN/IEC 60204-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, EN/ISO 13850, UL 508, machinery directive 2006/42/EC, CSA C22.2 No 14 and work equipment directive 2009/104/EC standards. It is a range of safety product which is simple to use and set up, with compact and ergonomic products to meet the requirements for performing emergency stops on dangerous machines. It is also used for all the machines requiring stopping of dangerous movement in the immediate vicinity of the machine.
- Green premium product
- 800000 cycles Mechanical durability
- IP65 Protection rating
- -25 to 70°C Ambient air temperature range for operation
Applications
Industrial, Safety
Technical Specifications
| Cable Span | 30m |
|---|---|
| Contact Voltage AC Max | 250V |
| Contact Voltage DC Max | 250V |
| Product Range | Preventa XY2C Series |
| Contact Configuration | SPST-NO, SPST-NC |
|---|---|
| Contact Current AC Max | 3A |
| Contact Current DC Max | 270mA |
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Morocco Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85365080 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 1.016 |
