TY-306P
Audio Transformer, Data / Voice Coupling, 2:1, 600 ohm, 600 ohm, 3.5 kHz, 1.5 kV

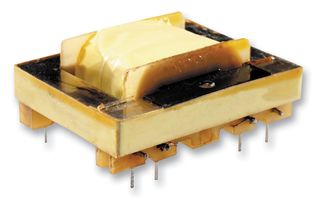

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTRIAD MAGNETICS
Manufacturer Part NoTY-306P
Order Code1824908
Product RangeTY Series
Your Part Number
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 23 week(s)
Notify me when back in stock
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$32.110 (S$34.9999) |
| 5+ | S$30.510 (S$33.2559) |
| 10+ | S$28.910 (S$31.5119) |
| 50+ | S$26.840 (S$29.2556) |
| 100+ | S$25.990 (S$28.3291) |
| 250+ | S$24.440 (S$26.6396) |
Price for:Each
Minimum: 1
Multiple: 1
S$32.11 (S$35.00 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTRIAD MAGNETICS
Manufacturer Part NoTY-306P
Order Code1824908
Product RangeTY Series
Technical Datasheet
Turns Ratio2:1
Primary Impedance600ohm
Secondary Impedance600ohm
Secondary Power-
Frequency Max3.5kHz
Isolation Voltage1.5kV
Transformer ApplicationsData/Voice Coupling
DC Resistance Primary31ohm
DC Resistance Secondary108ohm
Transformer MountingThrough Hole
Transformer TerminalsPC Pin
Frequency Min300Hz
Product RangeTY Series
SVHCNo SVHC (04-Feb-2026)
Product Overview
The TY-306P is a data/voice coupling Triad Audio Transformer designed to meet the requirements for access over leased private lines or through the dial-up switched telephone network. The TY series transformers are used for a variety of applications including impedance matching, isolation, repeat coil, line balancing, bridging and hybrid circuits.
