TMC4671-LEV-REF
Reference Design Board, TMC4671, Light Electric Vehicles

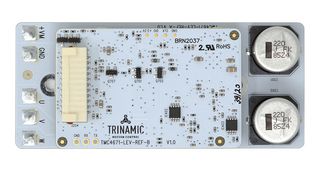

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTRINAMIC / ANALOG DEVICES
Manufacturer Part NoTMC4671-LEV-REF
Order Code3765363
Technical Datasheet
1 In Stock
Need more?
1 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$225.430 (S$245.7187) |
Price for:Each
Minimum: 1
Multiple: 1
S$225.43 (S$245.72 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTRINAMIC / ANALOG DEVICES
Manufacturer Part NoTMC4671-LEV-REF
Order Code3765363
Technical Datasheet
Silicon ManufacturerTrinamic
Silicon Core NumberTMC4671
Kit Application TypeMotor Driver
Application Sub TypeLight Electric Vehicles
Core ArchitectureARM
Core Sub-ArchitectureCortex-M3
Silicon Family Name-
Kit ContentsReference Design Board TMC4671
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
TMC4671-LEV-REF is an open source reference design for LEVs (Light Electric Vehicles). It is a BLDC servo driver for voltages up to +55V (ca. 13S) and up to 500W motor power. It offers a wide range of connectivity to external sensors, position feedback systems, and GPIO as well as supports external lights on the LEV. A CAN and a TTL UART interface are available for communication.
- Single axis BLDC servo driver
- Motor phase currents up to 35A RMS
- Supply voltage up to 13S (up to +55V)
- HALL sensor interface with +5V/100mA sensor supply
- CAN & UART communication interface
- 3x GPIO and/ or LED control
- Sin/Cos and torque sensor interface
- External light support for LEV
- On-board MEMS motion sensor
- Open source hardware and firmware
