TMCM-1111 STEPROCKER
Controller Board, TMC4361, Power Management - Motor Control, 2-Phase Stepper Motor Controller/Driver

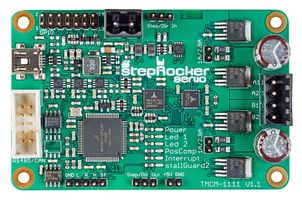

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTRINAMIC / ANALOG DEVICES
Manufacturer Part NoTMCM-1111 STEPROCKER
Order Code3804181
Technical Datasheet
5 In Stock
2 more incoming. You can reserve stock now
5 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$197.830 (S$215.6347) |
Price for:Each
Minimum: 1
Multiple: 1
S$197.83 (S$215.63 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerTRINAMIC / ANALOG DEVICES
Manufacturer Part NoTMCM-1111 STEPROCKER
Order Code3804181
Technical Datasheet
Application Sub Type2-Phase Stepper Motor Controller/Driver
Silicon ManufacturerTrinamic
Kit Application TypePower Management - Motor Control
Silicon Core NumberTMC4361
Kit ContentsController Board TMC4361
Product Range-
SVHCNo SVHC (16-Jul-2019)
Product Overview
TMCM-1111 STEPROCKER is a single axis motor controller/driver board for 2-phase bipolar stepper motors. It supports S-shaped ramps in addition to linear ramps and closed-loop operation together with an external encoder. Suitable for highly compact single axis stepper motor controller/driver board for 2-phase bipolar stepper motors, linear and S-shaped ramps and closed-loop operation together with external encoder applications.
- Single axis controller/driver for 2-phase bipolar stepper motor
- S-shaped ramps and linear ramps
- Closed-loop operation with external encoder
- Supply voltage range from +10V DC to 30V DC
- Up to 2.8A RMS motor current
- Multi-purpose inputs and outputs
- Interfaces: RS485 host interface, USB 2.0 host interface (mini-USB CONN), step/Dir input (TTL level)
- 3 multi-purpose I/P(used for incremental ABN-encoder), 6 multi-purpose I/Os, 2 open-drain O/Ps
- START input/output for synchronized motion with several axes
- Board size: 85mm x 55mm, height 15mm max. without mating connector
Technical Specifications
Application Sub Type
2-Phase Stepper Motor Controller/Driver
Kit Application Type
Power Management - Motor Control
Kit Contents
Controller Board TMC4361
SVHC
No SVHC (16-Jul-2019)
Silicon Manufacturer
Trinamic
Silicon Core Number
TMC4361
Product Range
-
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:84733020
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:No
RoHS Phthalates Compliant:No
SVHC:No SVHC (16-Jul-2019)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.035
