9,913 In Stock
Need more?
9,913 Delivery in 3-4 Business Days(UK stock)
Packaging Options
| Packaging Type | Quantity | Unit Price (excl GST): | Total |
|---|---|---|---|
| Cut Tape | 5 | S$0.273 | S$1.37 |
Cut Tape & Re-Reel
| Quantity | Price (inc GST) |
|---|---|
| 5+ | S$0.273 (S$0.2976) |
| 50+ | S$0.256 (S$0.279) |
| 100+ | S$0.239 (S$0.2605) |
| 500+ | S$0.179 (S$0.1951) |
| 1000+ | S$0.176 (S$0.1918) |
Full Reel
| Quantity | Price (inc GST) |
|---|---|
| 2500+ | S$0.116 (S$0.1264) |
| 7500+ | S$0.107 (S$0.1166) |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | VISHAY |
|---|---|
| Manufacturer Part No | TZM5232B-GS08Copy |
| Manufacturer Standard Lead Time | 13 weeks |
| Order Code | Full Reel2691782 Re-Reel2690085RL Cut Tape2690085 |
| Product Range | TZM52xx |
| Technical Datasheet | |
| Zener Voltage Nom | 5.6V |
| Power Dissipation | 500mW |
| Diode Case Style | SOD-80 (MiniMELF) |
| No. of Pins | 2Pins |
| Operating Temperature Max | 175°C |
| Diode Mounting | Surface Mount |
| Product Range | TZM52xx |
| Qualification | AEC-Q101 |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

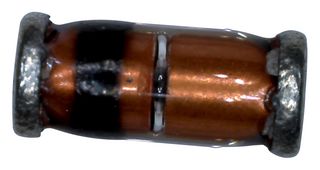

The TZM5232B-GS08 is a small signal Zener Diode features very sharp reverse characteristics, very high stability and low reverse current level. It is designed for voltage stabilization.
- Standard Zener voltage tolerance ±5%
- AEC-Q101 qualified
- UL94V-0 Moulding compound flammability rating
- Moisture sensitivity level 1
Applications
Industrial
Technical Specifications
| Zener Voltage Nom | 5.6V |
|---|---|
| Diode Case Style | SOD-80 (MiniMELF) |
| Operating Temperature Max | 175°C |
| Product Range | TZM52xx |
| SVHC | No SVHC (04-Feb-2026) |
| Power Dissipation | 500mW |
|---|---|
| No. of Pins | 2Pins |
| Diode Mounting | Surface Mount |
| Qualification | AEC-Q101 |
Technical Docs (2)
Alternatives for TZM5232B-GS08
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85411000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000031 |
