2061-602/998-404
Wire-To-Board Terminal Block, 6 mm, 2 Ways, 20 AWG, 16 AWG, 1.5 mm², Push In
1,561 In Stock
4,200 more incoming. You can reserve stock now
1561 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$4.460 (S$4.8614) |
| 10+ | S$3.200 (S$3.488) |
| 25+ | S$2.790 (S$3.0411) |
| 50+ | S$2.530 (S$2.7577) |
| 100+ | S$2.320 (S$2.5288) |
| 250+ | S$2.100 (S$2.289) |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
S$4.46 (S$4.86 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerWAGO
Manufacturer Part No2061-602/998-404
Order Code2428576
Product Range2061
Also Known AsGTIN UPC EAN: 4050821859802
Technical Datasheet
Pitch Spacing6mm
No. of Positions2Ways
Wire Size AWG Min20AWG
Wire Size AWG Max16AWG
Conductor Area CSA1.5mm²
Wire Connection MethodPush In
Rated Current17.5A
Rated Voltage320V
Block OrientationSurface Mount Right Angle
Product Range2061
SVHCNo SVHC (21-Jan-2025)
Product Overview

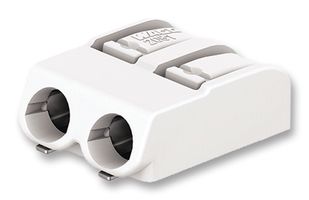

The 2061-602/998-404 from Wago is a surface mount, 2 pole terminal block with push button for wire insertion. This terminal block comes with 6mm pin spacing and suitable for wire size ranging from 20AWG to 16AWG.
- White colour terminal block
- Polyphtalamide glass fibre insulating material
- Copper alloy contact, right angle wire orientation
- Tin plating
- Weight of 1.456g
- Pollution degree of 2
- UL94 V-0 flammability rating
- Dimension of terminal block is 15.8mm x 11.7mm x 5.6mm (L x W x H)
- IEC/EN 60664-1 and UL 1977 approved
- Temperature range from -60°C to 105°C
Applications
Industrial
Technical Specifications
Pitch Spacing
6mm
Wire Size AWG Min
20AWG
Conductor Area CSA
1.5mm²
Rated Current
17.5A
Block Orientation
Surface Mount Right Angle
SVHC
No SVHC (21-Jan-2025)
No. of Positions
2Ways
Wire Size AWG Max
16AWG
Wire Connection Method
Push In
Rated Voltage
320V
Product Range
2061
Alternatives for 2061-602/998-404
1 Product Found
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Switzerland
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Switzerland
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.001456
