Radio Module, 927.5 MHz, 400 Kbps, Sensitivity -111 dBm, Transmit Power 25 dBm
Image is for illustrative purposes only. Please refer to product description.
ManufacturerWURTH ELEKTRONIK
Manufacturer Part No2609041191000
Order Code3499956
Product RangeThemisto-I Series
Your Part Number
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 21 week(s)
Notify me when back in stock
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$99.700 (S$108.673) |
| 5+ | S$94.040 (S$102.5036) |
| 10+ | S$89.600 (S$97.664) |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
S$99.70 (S$108.67 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerWURTH ELEKTRONIK
Manufacturer Part No2609041191000
Order Code3499956
Product RangeThemisto-I Series
Technical Datasheet
RF Modulation-
Data Rate Max400Kbps
Frequency Max927.5MHz
Sensitivity dBm-111dBm
Supply Voltage Min2.2V
Supply Voltage Max3.7V
Transmit Power25dBm
Module InterfaceUART
Supply Current400mA
RF Transceiver ApplicationsWireless Connectivity
Product RangeThemisto-I Series
SVHCLead (25-Jun-2025)
Product Overview

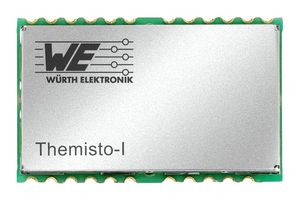

- Themisto-I 915MHz radio module
- Range up to 10.5Km line of sight
- RF output power up to 25dBm
- Small size (17 x 27 x 3.8mm)
- Integrated software stack with extensive functions
- Flexible addressing (maximum 255 nodes per network)
- FCC 15.247 (wideband)
- Configuration via UART interface
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
RF Modulation
-
Frequency Max
927.5MHz
Supply Voltage Min
2.2V
Transmit Power
25dBm
Supply Current
400mA
Product Range
Themisto-I Series
Data Rate Max
400Kbps
Sensitivity dBm
-111dBm
Supply Voltage Max
3.7V
Module Interface
UART
RF Transceiver Applications
Wireless Connectivity
SVHC
Lead (25-Jun-2025)
Technical Docs (3)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:85176200
US ECCN:5A992.c
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.00305
